ZCAR1600 universal relay tester's operating system supports on-site reinstallation, which is very helpful when the universal relay tester's operating system crashes or the device can't start up.

All steps to reinstall the universal relay tester s operating system are following:

Step1: Connect the ZCAR1600 universal relay tester with keyboard and mouse by usb.

Step2: After power on the ZCAR1600 universal relay tester, press F8 immediately, then the tester enters DOS interface.

Step3: On the universal relay tester DOS interface, entering "ghost11" as following:

Step 4: In ghost 11 software, select restore Local—>Partition—>Form Image as following:

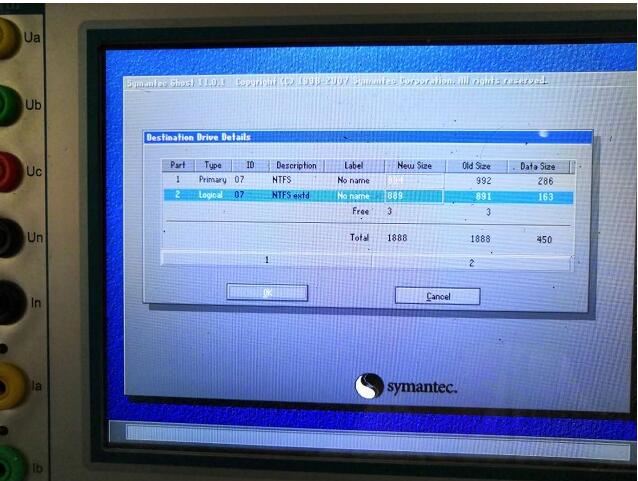

Step 5: Only one back up *.gho file on the ZCAR-1600 universal relay tester, using it to restore [Logical] destination device as following:

Step 6: After the restore process is completed, ZCAR-1600 universal relay tester can be restarted.
