CT Tester

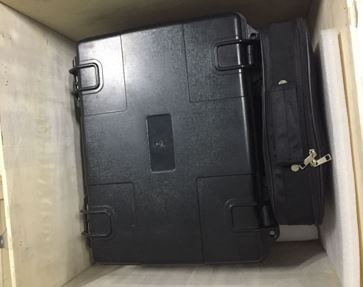

Release Time : 2019-04-03 View Count : 次Today we send the CT Tester ZC-102 to our customer. The tester technical parameters is as the below.
Booster output current & voltage | 1A/2500V 2A/1500V 5A/600V 10A/220V 20A/30V | |
Current generator output current | 600A | |
Output power | 3000VA | |
Voltage and current measurement accuracy | ±0.2% | |
CT ratio tests Voltage method / current method | Range | 1~40000 |
Accuracy | ±0.2% | |
PT ratio tests | Range | 1~40000 |
Accuracy | ±0.2% | |
Phase measurement | Accuracy | ±5min |
Resolving power | 0.5min | |
Secondary winding resistance tests | Range | 0~1kΩ |
Accuracy | 0.5%±2mΩ | |
AC load tests | Range | 0~1000VA |
Accuracy | 0.5%±0.05VA | |
Power supply | AC220V±10%，50Hz | |
work environment | Temperature: -10οC~50οC,Humidity: ≤90% | |
Size & Weight | Size: 425 mm×290 mm×310mm Weight: 30kg | |
Our website: www.kvtester.com. If you want know more, pls have a look of it.
Our main products are CT PT Analyzer, Protection relay Tester, Transforer test equipment, Circuit Breaker Analyzer, Insulation Oil Tester, Cable Fault Locator, Series Resonant/Voltage-withstand Test Equipment, Secondary/Switch Test Equipment, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
