High Precision CT Analyzer Brief Introduction

Product Parameters

Range of measurements

• Ratio and phase accuracy

• Winding resistance

• Excitation characteristics (knee points)

• Composite error (ALF, ALFi, FS, FSi, Vb)

• Burden impedance

• Transient CT classes and parameters (TPS, TPX, TPY and TPZ type CTs)

• Transient dimensioning factor (Ktd)

• If missing/unknown: CT type, class, ratio, knee point, power factor, nominal burden, operating burden, primary and secondary winding resistance

• Remanence and residual magnetism

Product key Advantage

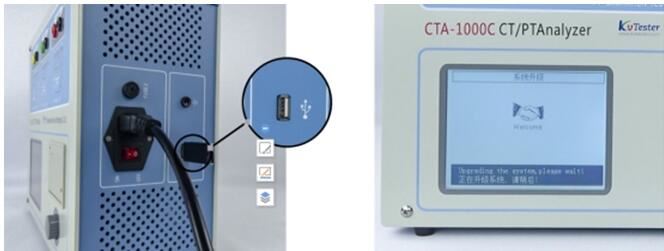

1. Software upgrade through usb flash disk This device support software upgrade through usb flash disk which makes it simple and convenient to solve those software bugs.

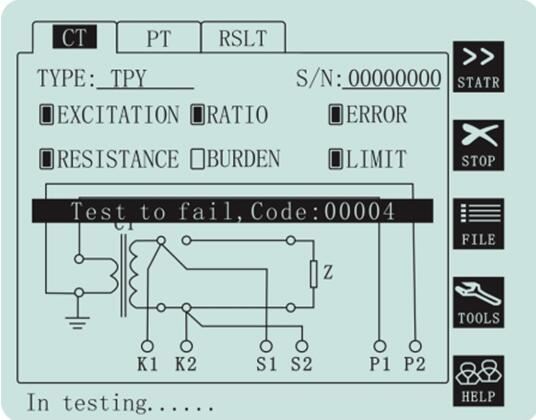

2. Self-inspection function. If there is any problem when using the tester, you can use this function to find out the Error Code,then our engineer will know which part has problem based on the code.

Product Features

1. Easy to use. The CT Analyzer allows all types of single and multi-ratio current transformers to be tested, and it evaluates the current transformer within seconds with the push of a button;

2. Highest measurement accuracy: 0.05% / 2 min when calibrating on site;

3. Automatic evaluation according to IEC and IEEE standards;

4. CT analyzer debugging time is short (automatic test duration <2 minutes);

5. Excellent workplace safety - Tests run at max. 180V;

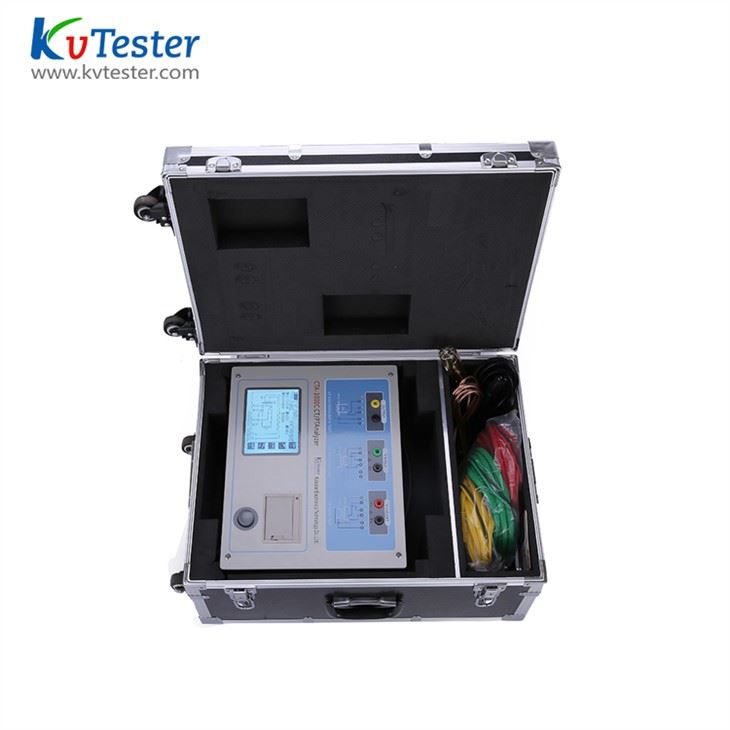

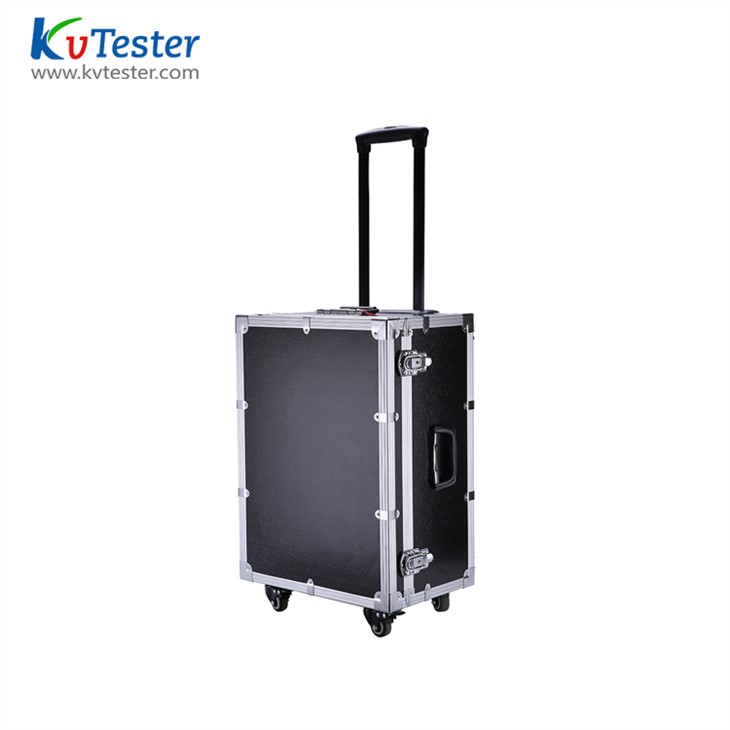

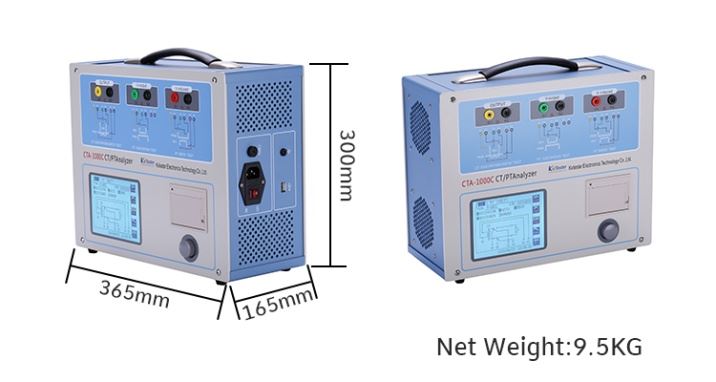

6. Very small and lightweight, easy to transport for on-site testing; The CT analyzer has a professional pull box design that is easy to carry and resistant to vibration.

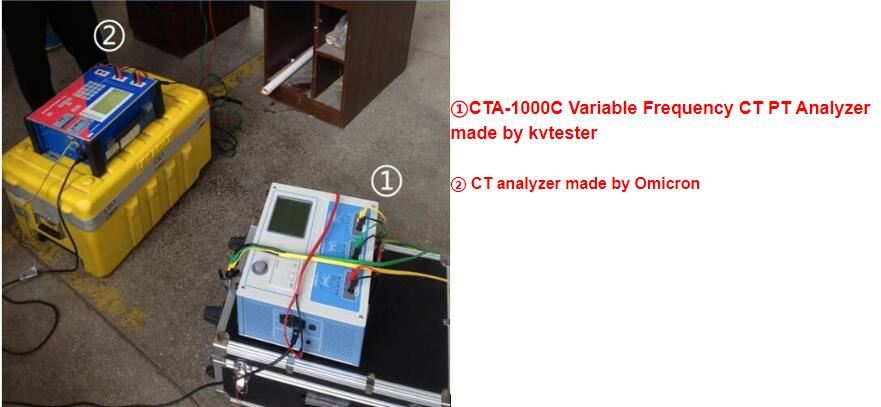

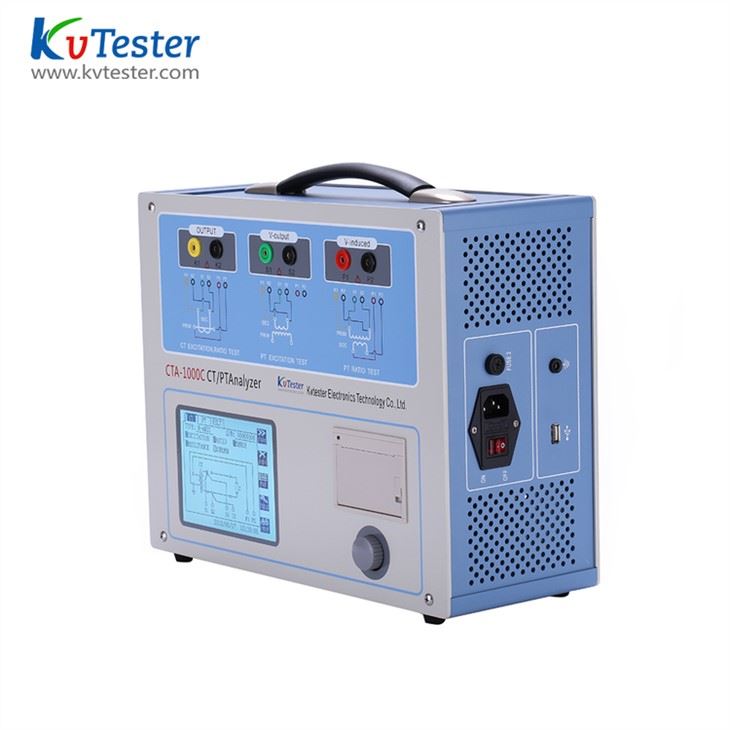

Omicron VS our CT Analyzer CTA-1000C

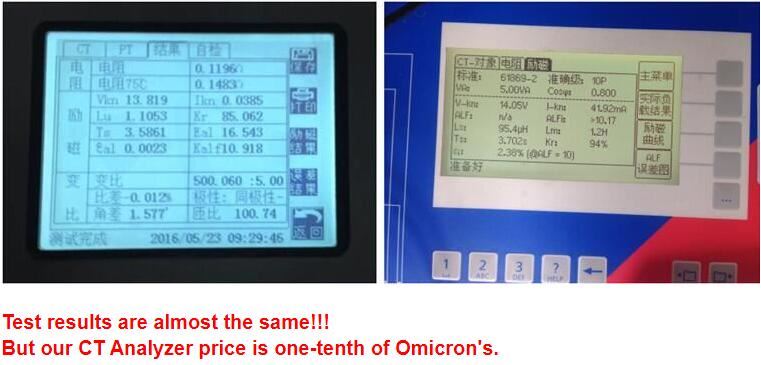

We helped a customer compared CTA-1000C CT tester with Omicron device and get very good results. our engineer did this project in the lab of China Electric Power Research Institute.

Why Choose us?

1) Owning core technology and advanced equipment with our own Technology Dept.;

2) On-line operation guidance and professional technical support ability.

3) Good quality can be ensured by our Professional QC team with competitive price.

   State Grid Corporation of China is one of our customer!

4) Certifications are available.

5) OEM Service Offered.

6) Design Service Offered.

7) Small trial order can be accepted to see our quality and service.

8) Standardization, effectiveness and timeliness of the pre-sale, in-sale and after sales service.

Product FAQ

1. Is it all right to make customer's own brand name?

Yes, we can provide OEM service.

2. Are you a manufactuer or trading company?

We area leading manufacturer in China.

3. Can you do the design for us?

We can provice personalized customization service.

4. When Can I get the Price? We usually quote within 6hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

5. What should I do if I do not know how to use? Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technical  support and online guidance.

6. How can I choose the suitable one?

Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.

7. Could you please tell me the Warranty period of your products?    Our warranty period is one year free and lifelong maintenance, and if the product we sell is damaged (if not man-made damage), in the first year, we will send free parts for free replacement. Over the warranty, the maintenance is paid service.

8. Do you have Technical Backup to all customers from different customers? To be surely, our technical support is always available and quick response. We are manufacture of so much on site testing experience and understand how to deal with your problems. Moreover, our engineer can go to your country to support if need.
