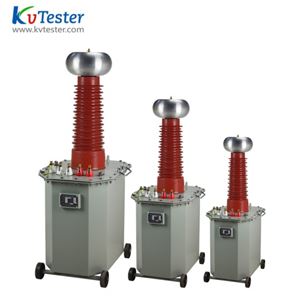

Applied Voltage Test Transformer
Brief Introduction
Applied voltage test transformer is one of the important products for testing the performance of electrical equipment. It is widely applicable to the power station, power supply system, rural power, railway, oil field, substation, (hydro) power plant, mine enterprises, high-tension laboratories of colleges and scientific research units.
Technical Data:
1. Voltage class: AC 50kV~300kV; DC 70~120kV
2. Capacity range: 1~400kVA
3. No-load current: < 7%
4. Impedance voltage: < 8%
5. Product type: AC, DC&AC, AC cascade, AD & DC cascade.
FAQ about Applied voltage test transformer Features
1. Q: Does it output AC or DC or AC&DC?
A: We have AC and AC&DC, for your choice.
2. Q: Where is it used?
A: Testing dielectric strength of High-voltage electrical equipment, electrical components, and insulation material, test products insulation level, For example, cable, high-tension switch, measuring the bear voltage capability to find the insulation defects sample etc.
3. Q: What types of testing equipment? What’s the difference?
A: There are dry, oil-immersed and inflatable, three types. Differences as follow:

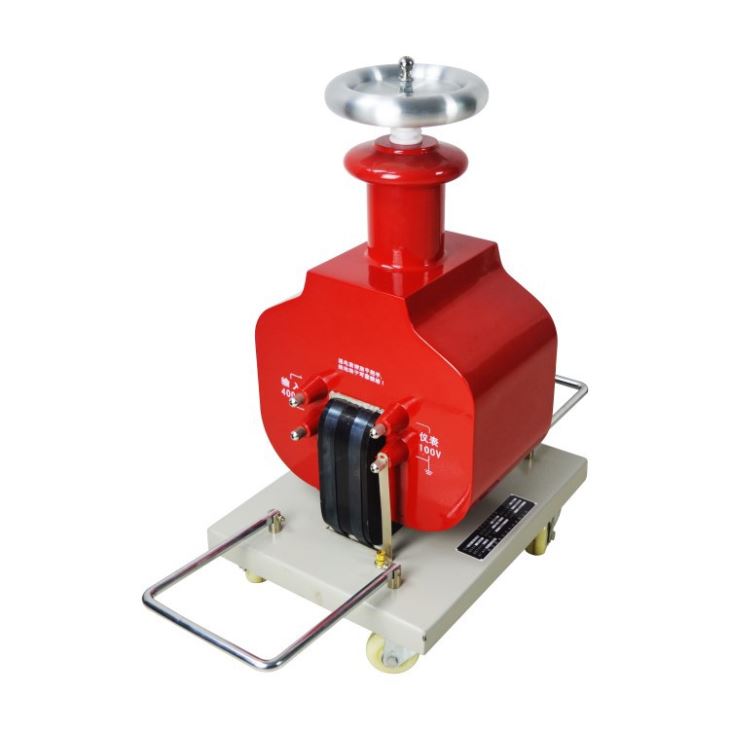

Dry Type: light weight, volume light, can can run backward, price expensive.
SF6 Inflatable: interrupter resistance, and light weight.

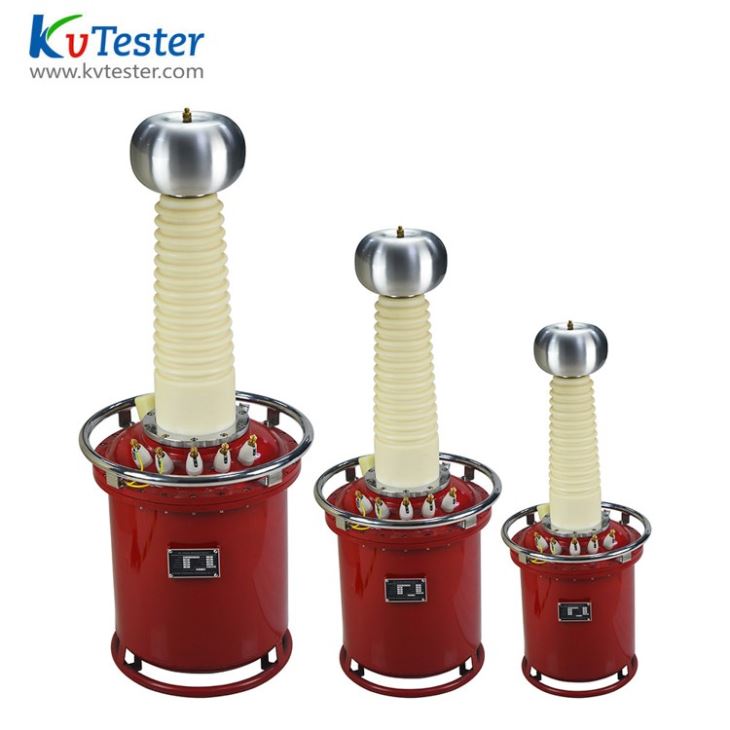

Oil-immersed: large capacity, cheap, easy maintenance, mainstream products.
4. Q: Whether does it have battery or liquid? Is Convenient to delivery?
A: Some models have insulation oil, no battery, which does not influence the delivery.
Main product Specifications:
Specification model | capacity (kVA) | High voltage | High voltage | Low voltage input | Ratio | Temperature rise °C (30 minutes) | |
Voltage(V) | Current(A) | ||||||
ZC-501A-1.5/50 | 1.5 | 50 | 30 | 200 | 7.5 | 500 | 10 |
ZC-501A-3/50 | 3 | 50 | 60 | 200 | 15 | 500 | 10 |
ZC-501A-5/50 | 5 | 50 | 100 | 200 | 25 | 500 | 10 |
ZC-501A-10/50 | 10 | 50 | 200 | 200 | 50 | 500 | 10 |
ZC -501A-20/50 | 20 | 50 | 400 | 380 | 52.6 | 500 | 10 |
ZC-501A-30/50 | 30 | 50 | 600 | 380 | 79 | 500 | 10 |
ZC-501A-50/50 | 50 | 50 | 1000 | 380 | 132 | 500 | 10 |
ZC-501A-5/100 | 5 | 100 | 50 | 200 | 25 | 1000 | 10 |
ZC- 501A-10/100 | 10 | 100 | 100 | 200 | 50 | 1000 | 10 |
ZC-501A-20/100 | 20 | 100 | 200 | 380 | 52.6 | 1000 | 10 |
ZC-501A-30/100 | 30 | 100 | 300 | 380 | 79 | 1000 | 10 |
ZC- 501A-50/100 | 50 | 100 | 500 | 380 | 132 | 1000 | 10 |
ZC 501A-15/150 | 15 | 150 | 100 | 380 | 39.5 | 1500 | 10 |
HIGH QUALITY:
Passed the ISO9001:2008 quality system authentication.
FAQ
1. When Can I get the Price?
We usually quote within 6hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. What about the leading time for production?
Honestly, it depends on the order quantity and the product. Usually our leading it 7 working days after order confirmed.
3. Could I use my own LOGO or design on goods?
Yes, customized logo are available.
4. Could you please tell me the Warranty period of your products?
Our warranty period is one year free and lifelong maintenance, and if the product we sell is damaged (if not man-made damage), in the first year, we will send free parts for free replacement.
Over the warranty, the maintenance is paid service.
5. Do you have Technical Backup to all customers from different customers?
To be surely, our technical support is always available and quick response.
We are manufacture of so much on site testing experience and understand how to deal with your problems. Moreover, our engineer can go to your country to support if need.
