Summary

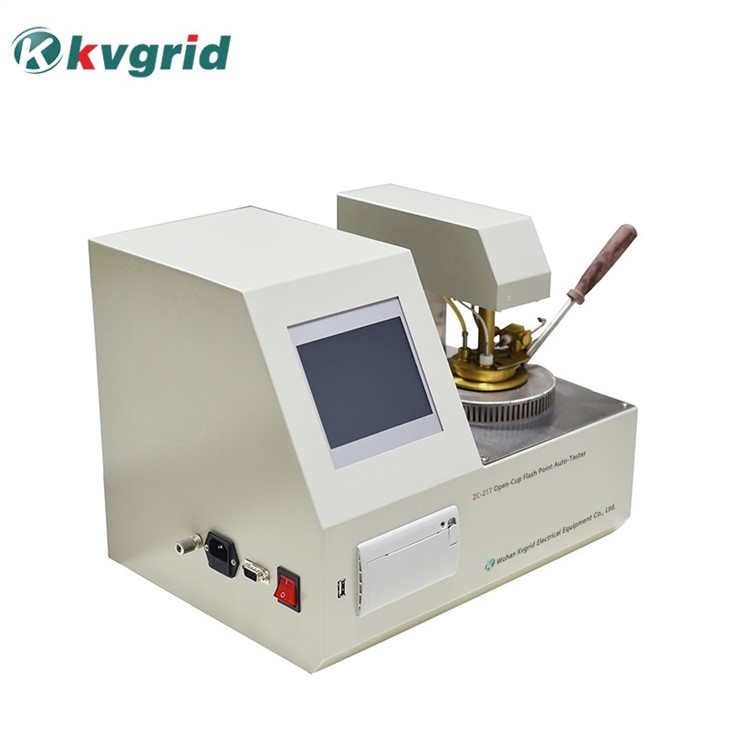

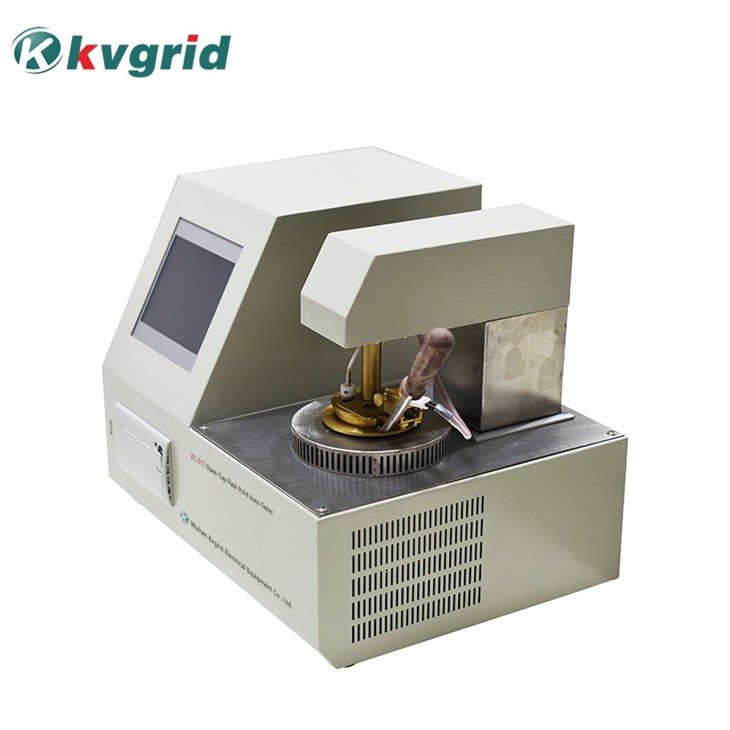

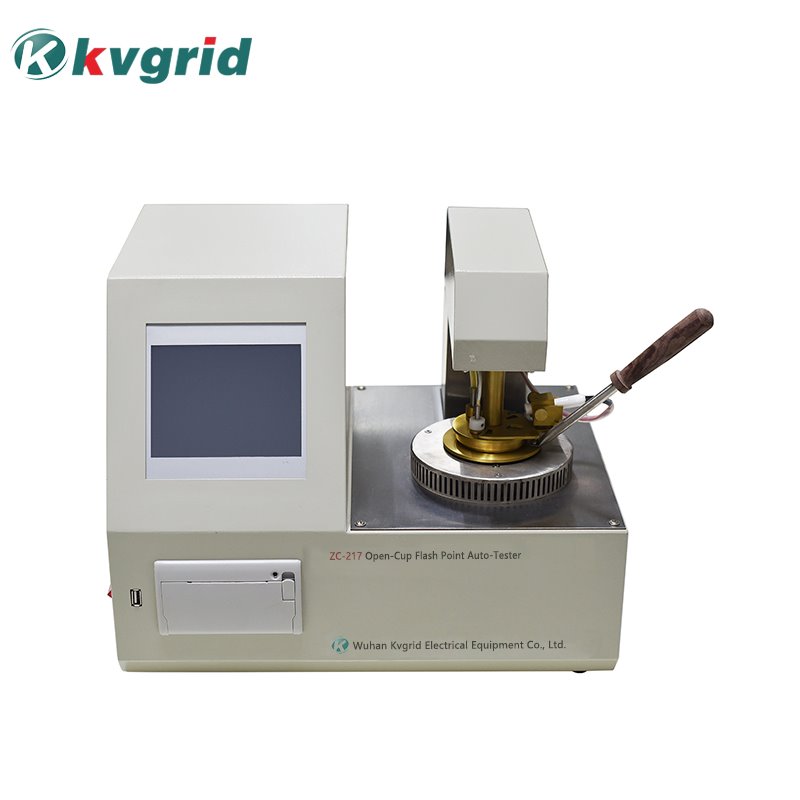

    Automatic analyzer to open flash point, flash point of petroleum products Determination of value, value. The instrument adopts electric ignition mode, without any combustible gas, fully comply with ASTMD92 (GB3536-2008), GB267-88 method. ARM series of high performance microprocessor, electric erase memory (which can be stored on a thousand data), color LCD and touch screen, PID from the whole set of the latest technology. The instrument has the following characteristics:

     Very strong function. A dual-purpose machine at the same time determination of flash point and ignition point, and print the test results, with internal clock chip, automatically display the current date, time, power down to keep the.

 High precision. The temperature error was controlled at 1.5, and the resolution was 0.1.* good repeatability.

 Test environment in the guarantee, consistent with 267-88 GB3536 (ASTM D92) or GB / T for continuous measurement of the same samples, both flash point value difference is less than or equal to 4 degrees centigrade.

     A high degree of automation. Can automatically complete the testing process, automatic cooling, automatic information tips, etc..

    Open flash point determination instrument function and performance at home and abroad and the highest level standards, oil, electricity, chemical industry, commodity inspection and other industries to replace imported products of special instruments.

technical parameters

Range: 40 ~400

Detection type: flash point or light

Temperature test: platinum resistance

Quasi accuracy: 1

Re: GB3536-2008 (D92 ASTM), 267-88 GB/T

Display device: color liquid crystal display

Information storage: 500 measurement results can be stored

Ignition mode: electric ignition

Cooling method: forced air cooling

Printer: dot matrix printer

Self check function: lift rod, stroke, print, etc.

Power: less than 600VA

Power supply: 220V + 11V, 2.5Hz + 50Hz

Ambient temperature: 10~35

Ambient humidity: less than 90%

Weight: about 17kg
