ZC-413B Ground Down Lead Conduction tester is applicable to the measurement of the on resistance between the grounding down lead of power equipment and the grounding grid (or adjacent equipment), as well as the measurement of low resistance value.  it’s a portable tester with high automation degree, which is specially used for the electrical integrity test of grounding device, and its technical indicators meet or exceed the requirements of relevant standards. The instrument has the advantages of simple operation, high precision, fast testing speed, good repeatability and intuitive reading. It is an ideal special instrument in accordance with the requirements of the regulations, which greatly facilitates the development of the test project and improves the work efficiency.

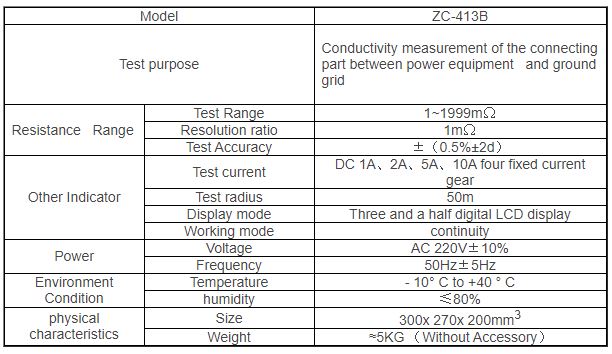

Ground Down Lead Conduction tester Parameters

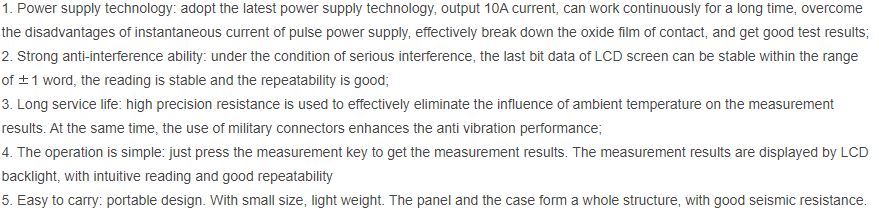

Ground Down Lead Conduction tester Feature

Application Guide

The electrical integrity of grounding device refers to the electrical connection between various electrical equipment, parts of grounding device and equipment, namely DC resistance value, also known as electrical continuity. The reliable and effective connection between the grounding down lead of power equipment and the grounding grid is the fundamental guarantee for the safe operation of the equipment. Grounding down-lead is the connection part between power equipment and grounding grid. During the long-term operation of power equipment, the joint may be affected by damp and other factors, resulting in node corrosion, even fracture and other phenomena, resulting in the increase of resistance between the grounding down lead and the main grounding grid connection point, which cannot meet the requirements of the power regulations, making the equipment unsafe in operation will cause the equipment to lose ground operation. The underground grounding electrode and its connecting part of the grounding device may also be corroded or even broken. Therefore, it is necessary to test the electrical integrity of grounding device regularly.

According to the electric power industry standard DL / T475-2006 guide for measurement of characteristic parameters of grounding device, special instrument shall be selected for measurement of electrical conductivity, with resolution of 1mΩ and accuracy of no less than 1.0 level. ZC-413B grounding down lead conduction tester developed by our company according to this standard is a portable tester with high degree of automation, which is specially used for the electrical integrity test of grounding device, and its technical indicators meet or exceed the requirements of relevant standards. The instrument has the advantages of simple operation, high precision, fast testing speed, good repeatability and intuitive reading. It is an ideal special instrument in accordance with the requirements of the regulations, which greatly facilitates the development of the test project and improves the work efficiency.
