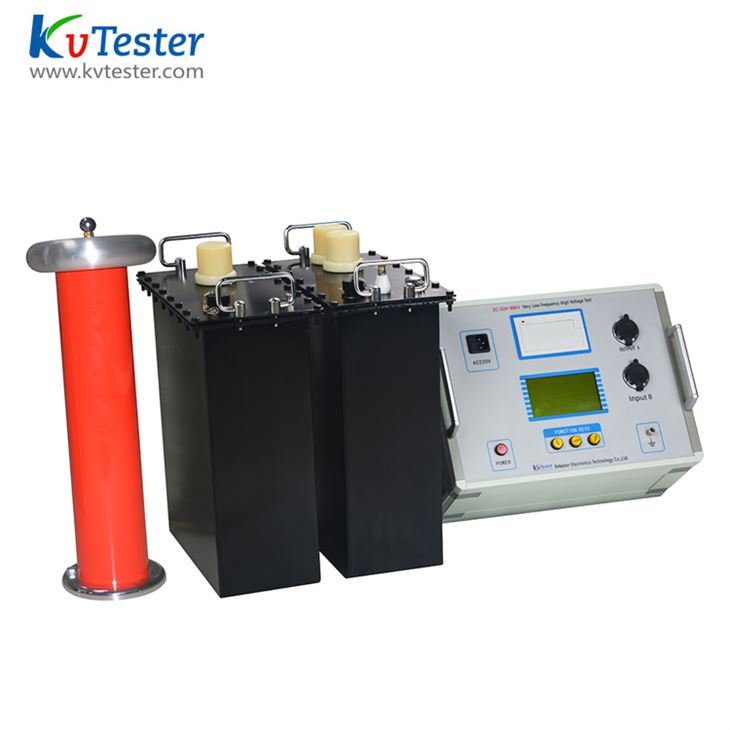

High Voltage VLF Hipot Tester
High Voltage VLF Hipot Tester Brief Introduction
Ultra low frequency insulation withstand voltage test is an alternative method for power frequency withstand voltage test.
Using 0.1Hz ultra low frequency withstand voltage test replace power-frequency withstand voltage test, not only is equivalent to the same equipment, and greatly reduces the volume and the weight, so the ultra-low frequency withstand voltage device is widely used in large generators, cables, power capacitor test AC voltage withstand test products.
Features
1. Data of current and voltage are obtained directly through the sampling of high-pressure side and it is true and accurate.
2. Over-voltage protection: the instrument will shut down to protection within 20 ms when the output voltage is exceeding limiting values of setting.
3. Over-current protection: design for dual protection of high and low voltage, downtime protection can be accurately set in high-pressure side. Shut down to protection times is within 20 ms when the current of low-voltage sides exceeds reacted current.
4. High-voltage output protection resistor design in the body boost and it is no need to additional outside resistor.
5. Closed-loop negative feedback control circuit of high and low voltage.
Product Parameters
Model no | Rated Voltage/current | Load Carrying Capacity | Power FuseTube | Product Structure and Weight |
ZC-524-30 | 30kV/20mA （Peak） | 0.1Hz,≤1.1µF | 5A | Controller：4㎏ Booster： 25㎏ |
0.05Hz,≤2.2µF | ||||
0.02Hz,≤5.5µF | ||||
ZC-524-40 | 40KV/20mA （Peak） | 0.1Hz,≤1.1µF 0.05Hz,≤2.2µF 0.02Hz,≤5.5µF | 10A | Controller: 5 kg Booster: 30 kg Size: L*W*H 357*208*343 |
ZC-524-50 | 50kV/30mA （Peak） | 0.1Hz,≤1.1µF | 15A | Controller：4㎏ Booster： 50㎏ |
0.05Hz,≤2.2µF | ||||
0.02Hz,≤5.5µF | ||||
ZC-524-60 | 60KV/30mA （Peak） | 0.1Hz,≤1.1µF 0.05Hz,≤2.2µF 0.02Hz,≤5.5µF | 15A | Controller: 6 kg Booster: 50 kg Size: L*W*H 357*220*370 |
ZC-524-80 | 80kV/30mA （Peak） | 0.1Hz,≤0.5µF | 20A | Controller：4㎏ Booster Grade 1（30kV）：25㎏ Booster Grade 2（50kV）：50㎏ |
0.05Hz,≤1µF | ||||
0.02Hz,≤2.5µF | ||||
ZC-524-90 | 90kV/30mA (Peak) | 0.02Hz,≤2.5µF | 20A | Controller:4KG Booster Grade 1(40kV):25KG Booster Grade 2(50kV):50KG |
Why Choose us?
1) Owning core technology and advanced equipment with our own Technology Dept.;
2) On-line operation guidance and professional technical support ability.
3) Good quality can be ensured by our Professional QC team with competitive price.
State Grid Corporation of China is one of our customer!
4) Certifications are available.
5) OEM Service Offered.
6) Design Service Offered.
7) Small trial order can be accepted to see our quality and service.
8) Standardization, effectiveness and timeliness of the pre-sale, in-sale and after sales service.
1. Is it all right to make customer's own brand name?
Yes, we can provide OEM service.
2. Are you a manufactuer or trading company?
We area leading manufacturer in China.
3. Can you do the design for us?
We can provice personalized customization service.
4. When Can I get the Price?
We usually quote within 6hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
5. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technical support and online guidance.
6. How can I choose the suitable one?Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
7. Could you please tell me the Warranty period of your products?
Our warranty period is one year free and lifelong maintenance, and if the product we sell is damaged (if not man-made damage), in the first year, we will send free parts for free replacement.
Over the warranty, the maintenance is paid service.
8. Do you have Technical Backup to all customers from different customers?
To be surely, our technical support is always available and quick response.
We are manufacture of so much on site testing experience and understand how to deal with your problems. Moreover, our engineer can go to your country to support if need.
