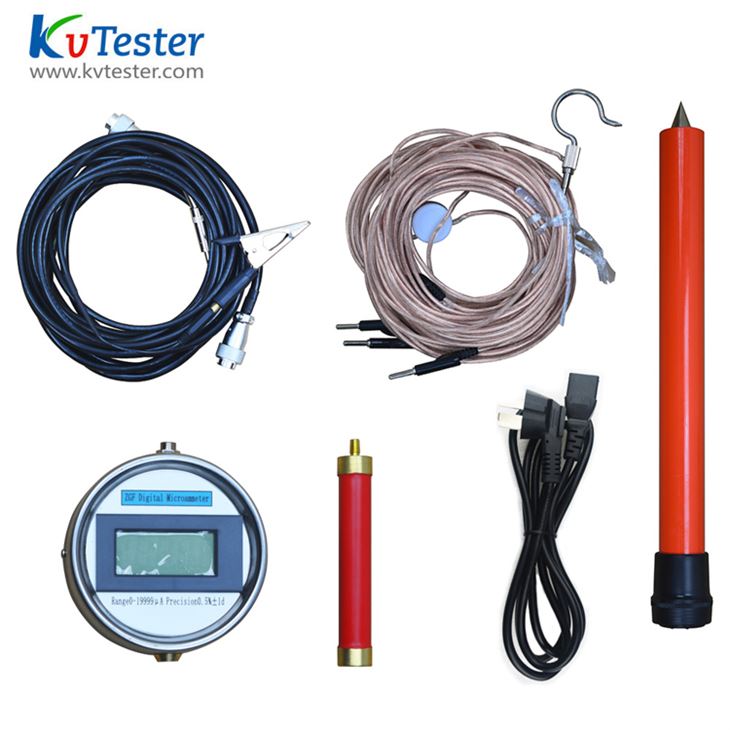

60kV 2mA DC HV Generator
Product Features
(1) Adopt high frequency multi-voltage circuit, PWM pulse with modulation technology and high-power IGBT component.
(2) Adopt large voltage feedback, highly-stable output voltage, and the ripple factor is less than 1%.
(3) Full range with smooth regulating, voltage regulate fitness precision≤0.5%, stability≤1%, voltage and current error is 1%(readout value:±0.2kV), current error is ±1.
(4) Boost potentionmeter starting from zero for boosting.
(5) 75%UDC1mA functional button, which is convenient for zinc oxide arrester test at accuracy up to 1% and readout value to ±1%.
(6) The over-voltage protection can be set by dialing code, is clear, the error up to ±1%.
(7) Multivoltage cylinder adopts new materials, light, handy and stable. Its surface is coated with the insulating material, good electrical performance and moisture prevention.
(8) Folding supporting lug with a large area in diameter and sound stability.
(9) Integrated design and HV earth cable leading-out, which is easy for field testing.
Product Parameters
Type Parameter | 40/3 | 60/2 |
Rated voltage(kV) | 40 | 60 |
Rated current(mA) | 3 | 2 |
Rated power(W) | 120 | 120 |
Weight of case(kg) | 7 | 10.5 |
Multi-voltage cylinder weight(kg) | 2.5 | 2.7 |
Multi-voltage cylinder height(mm) | 400 | 400 |
Voltage measure accuracy | Data display meter±(1%reading ±2digit) | |
Current measure accuracy | Data display meter±(1%reading ±2digit) | |
Ripple factor | ≤1% | |
Voltage stability | Random fluctuation, when power voltage change±10%,≤1% | |
Overload capacity | The no load voltage can exceed 10%of rated voltage, used for 10 minutes.The maximum charge current is 1.5 times rated current. | |
Power supply | Single-phase AC 50Hz 220V±10% | |
Operation method | Intermittent use | |
The longest running time is 30 minutes each time | ||
Working environment | Temperature:-10~40℃ | |
When indoor temperature is 25℃,the relative humidity should be less than 85%.(non-considering) | ||
Altitude: less than 1500m | ||
With capacitive load capacity | The electric capacity of test object without limited | |
Can use 1.5 times rated current to charge | ||
Structural features | Epoxy glass steel electrical insulation voltage multiply cylinder | |
Air insulation, without leakage | ||
