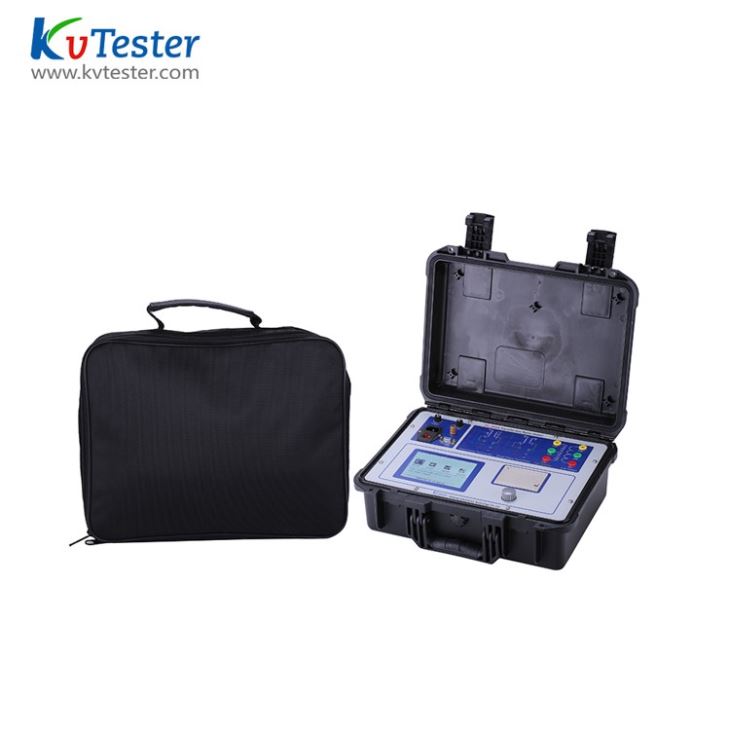

Transformer turns ratio tester introduction

ZC-203C transformer turns ratio meter is especially suitable for the test of transformation ratio and phase difference of special transformer. It applies to test the transformer ratio, group and polarity of the single/three phase transformer and voltage transformer. It is small volume, light weight, high precision, and good stability.

Hot Tags: Transformer turns ratio meter, Transformer turns ratio test set; transformer turns ratio test

Transformer turns ratio tester Features

1. It is especially suitable for the measurement of rectifier transformer with phase shifting, and it can display the angle of phase shifting intuitively

2. Fast measurement speed, a set of data test need a few seconds, in the multi - test process of the transformer only need set once the parameters can be completed all the sub - test, greatly improve the efficiency of work.

3. According to the test sample, the instrument can automatically adjust the range, and according to the excitation current of the sample the output power can be adjusted automatically.

4. The interior has a thermal protection, with automatic check wiring function.

5. The test results are not affected by the frequency and amplitude fluctuation of power frequency power supply

6. The internal integrated amplitude of the instrument is stable and adjustable, the phase is constant, and the output current is large.

7. The device can be used for testing various transformers, current transformers and voltage transformers, and is especially suitable for the test of the Z type winding transformer, the rectifier transformer and the balance transformer.

8. The test precision is high, and the instrument adopts 16 bit high precision AD converter and DSP (digital signal processing) chip, which can ensure the accuracy of the measurement and the ability of anti disturbance.

9. It has the function of over-current protection, high and low voltage reverse connection

10. The upper computer can control the whole test process, save the data and print the test report

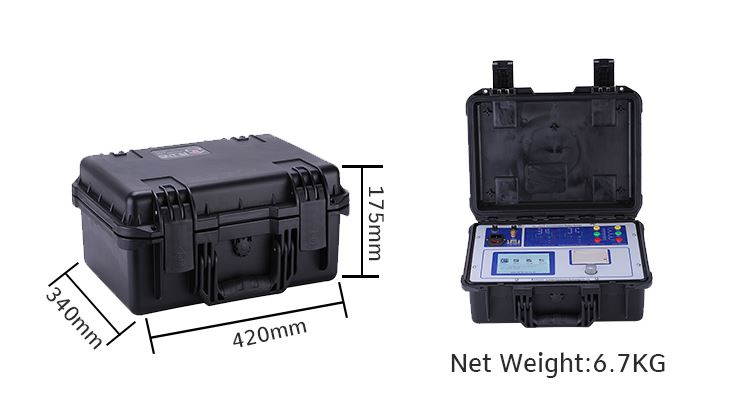

Product Parameters

HIGH QUALITY:

Passed the ISO9001:2008 quality system authentication.
