Introduction

Relay Protection microcomputer test device play a key role in operating electricity power systems reliably and safely. It is the testing device used in professional field of microcomputer protection, relay protection, excitation measurement, fault recording and other professional fields tests, widely used in electric power, petrochemical, metallurgy, railway, aviation, military and other industries of scientific research, production and electrical test site.

Except detecting various relay protection testers ( such as current, voltage, IDMT, power direction, impedance, differential, low-cycle, simultaneous, frequency, DC and time etc) and microcomputer protection, it can also simulate instantaneous, permanent and transformational faults to test from single-phase to three-phase. Moreover, it can finish all kinds of large-scale and complicated checkout work with high automatic level. This will also be convenient to test and scan various protective definite value, to carry out bug playback, to store testing data in the real time, to display vector diagram, to print report online and to test ATS, fast cutting and system shock etc. 6-phase current can conveniently proceed with 3-phase differential motion protective testing, while 12-phase output can be used in ATS testing.

Relay Protection microcomputer test device FAQ

Q: 1. English version is available?

A: Yes

Q: 2.What's the phase?

A: We have three phases and six phase. We are the State Grid Supplier, the quality and the delivery time can be guaranteed.

Q: 3.What is the lead time for delivery?

A: 7-15 working days according to your specific requirement

Q: 4. Do you have any MOQ limit?

A: 1pc

Q: 5. what’s your acceptable payment term?

A: Our usually payment term is T/T, L/C, Papal, etc.

Q: 6. Can you make OEM service?

A: Yes, we can!

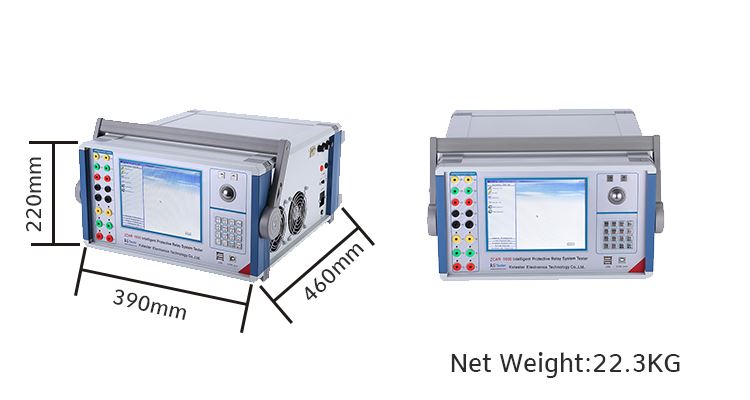

Technical Data

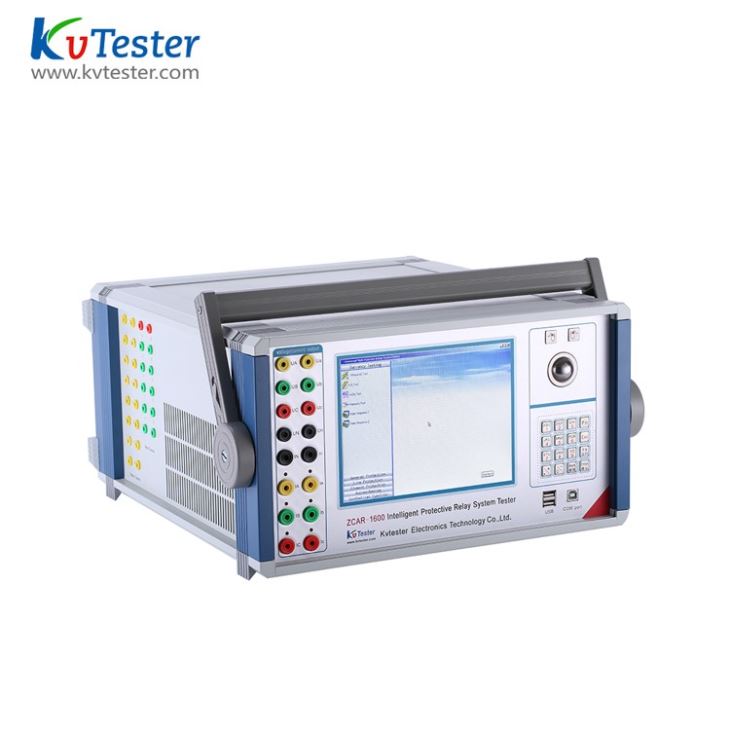

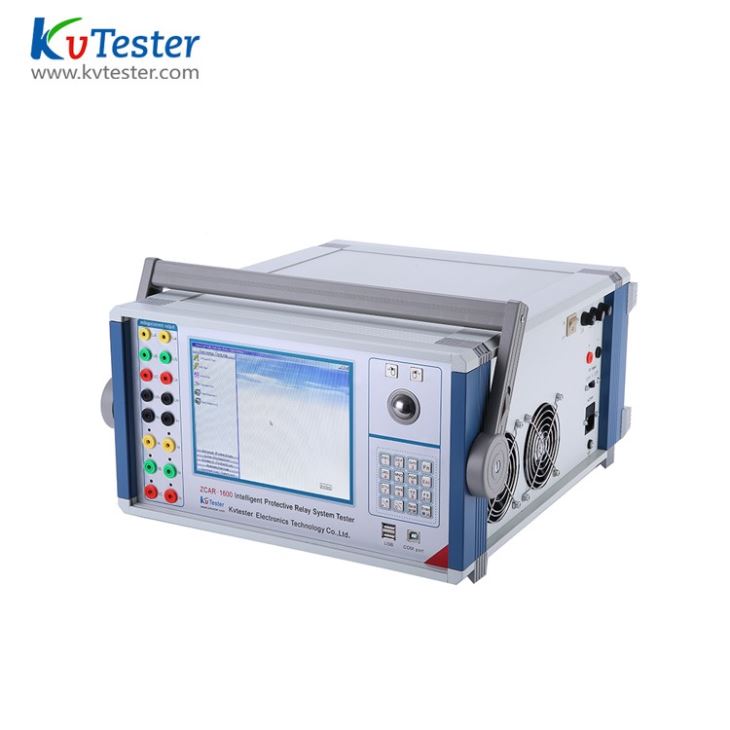

Secondary Injection Relay Test Set Relay Tester Features

1. The output up to 6 phase voltage 6 phase current, can be arbitrary combination of conventional 4 phase voltage 3 phase current type, 6 phase voltage type, 6 phase current type, and 12 phase output mode;

2. High performance embedded industrial control computer and 8.4 "large screen high resolution color TFT LCD screen can provide rich and intuitive information, including the current working status of the equipment, the next work tips and various help information.

3. The output terminal adopts high fidelity and high reliability modular linear power amplifier with excellent performance instead of switching power amplifier. High and medium frequency interference will not be produced on the test site, and the waveform smoothing precision from large current to small current is guaranteed.

4. The output part is controlled by DSP, with fast operation, strong real-time digital signal processing ability, wide transmission band and high resolution D/A conversion control. High precision output waveform, low distortion and good linearity. A large number of advanced technology and precision components and materials are adopted, professional structural design makes the device is smart an light, full in function, easy to carry out;

5. Can complete a variety of large complex and high automation calibration work, It can easily test and scan various protection values fault playback, store test data in real time, display vector images, print reports online, etc.

6. An independent 110V and 220V dedicated adjustable dc power supply, convenient for on-site inspection

7. The new generation of ZCAR- 1600 microcomputer relay protection tester is equipped with 10 channels of input and 8 channels of output, which is convenient for the Self Power Input test. The input contact is compatible with null contact and 0 ~ 250V potential contact, Input contacts are empty contacts Compatible with 0 ~ 250V potential contacts, intelligent automatic identification

8. Provide various automatic test software modules and GPS synchronization trigger test (optional)

9. Can complete all kinds of complex calibration work, can easily test and scan all kinds of protection fixed value, fault playback. It can store test data in real time, display vector pictures, print reports and so on

10. Reasonable heat dissipation structure design, reliable hardware protection, soft start function, faults self - diagnosis and output locking functions.

Reinstallation steps:

ZCAR1600 universal relay tester's operating system supports on-site reinstallation, which is very helpful when the universal relay tester's operating system crashes or the device can't start up.

All steps to reinstall the universal relay tester's operating system are following:

Step1: Connect the ZCAR1600 universal relay tester with keyboard and mouse by usb.

Step2: After power on the ZCAR1 600 universal relay tester, press F8 immediately, then the tester enters DOS interface.

Step3: On the universal relay tester DOS interface, entering "ghost11" as following:

Step4: In ghost11 software, select restore Local -> Partition ->Form;

Step5: Only one back up *.gho file on the ZCAR-1600 universal relay tester, using it to restore [Logical] destination device.

Step6: After the restore process is completed, the ZCAR-1600 universal relay tester can be restarted.

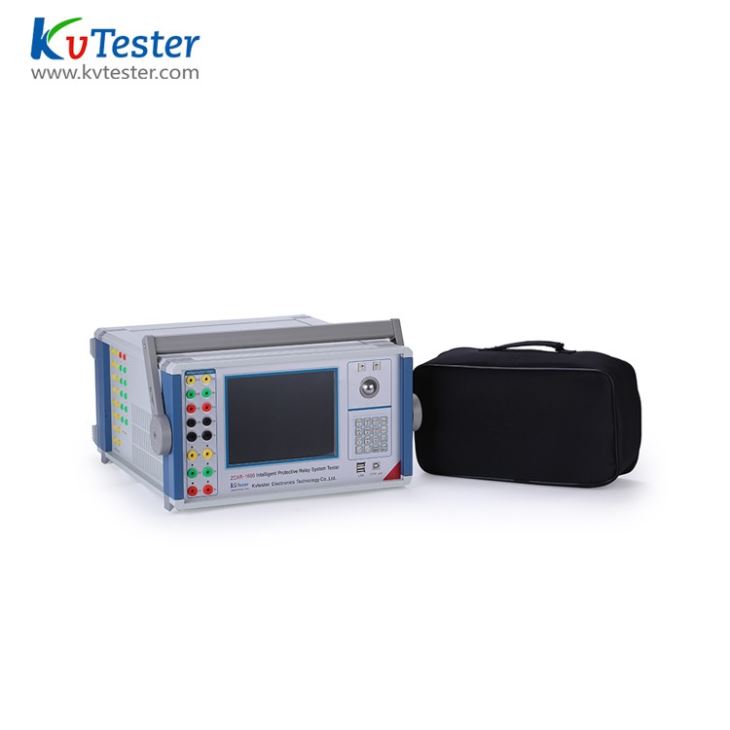

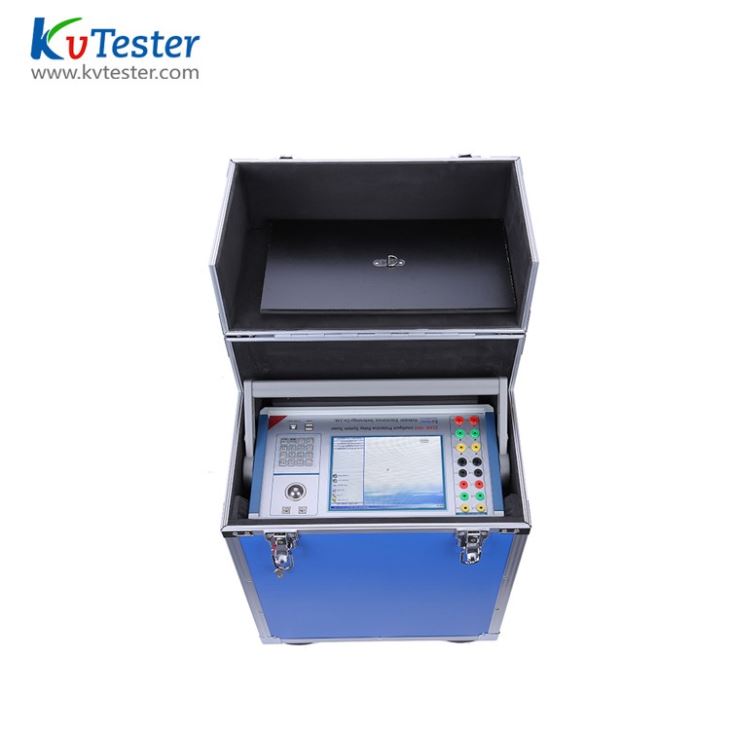

Standard Accessories:

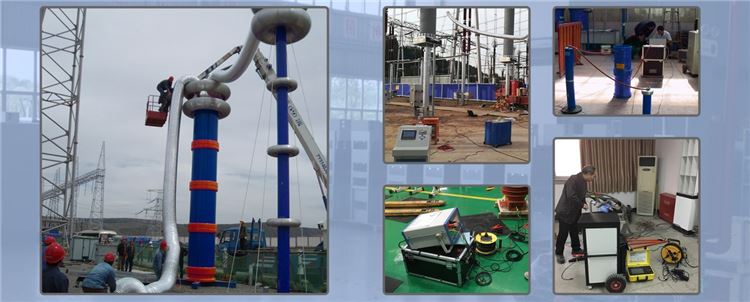

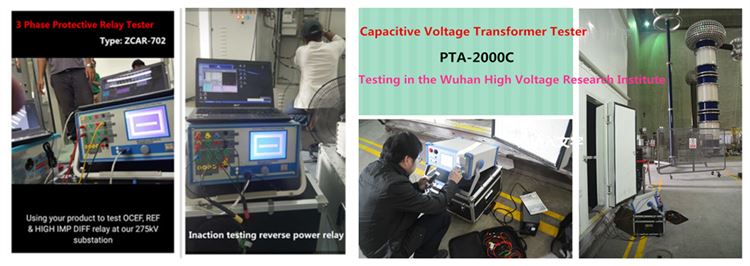

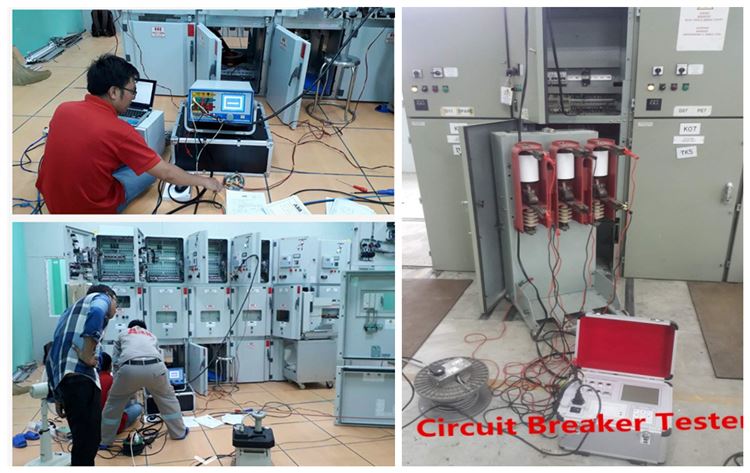

Filed Test & Service
