Secondary Injection Test Set

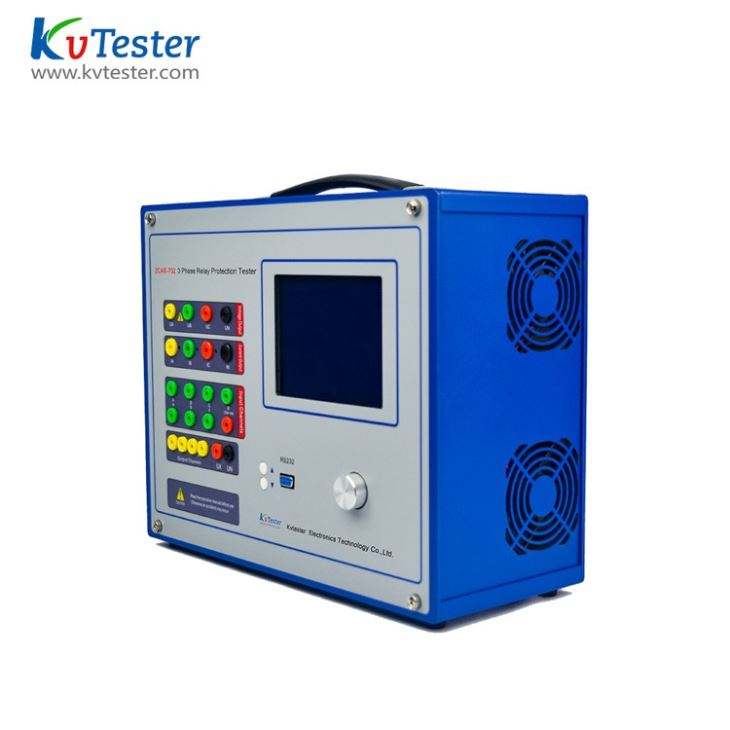

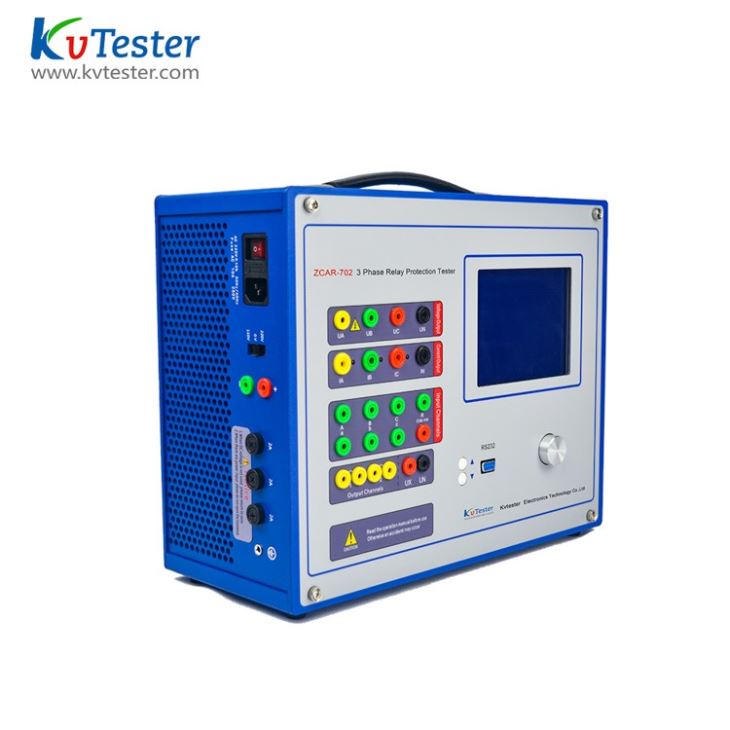

ZCAR-702 Protection Relay Test is operated by the convenient and flexible rotation mouse through the large LCD screen and all English display. It can complete the most testing work, including all sorts of relay and microcomputer protection test, and can simulate all kinds of complicated instantaneity, permanent, transform failure for the test.
Features
1. The standard output of 4 phases of voltage and 3 phases of current
2. The stand-alone operation is convenient
3. Dual operation model, connect computer for work
4. Strong function of software
5. The amount of switch quantity contacts is rich
6. Large LCD screen
7. Self-protection. Adopt reasonable design of heat dissipation structure, and have reliable and perfect protection measures, soft start of power supply, and certain fault self diagnosis and locking function.
8. With Independent DC power output. The device is equipped with a circuit of 110V or 220V special DC power output.
9. Cost-effective. It belongs to the cross professional joint design product and integrates the advanced scientific and technological achievements of many specialties. It has both the performance of large-scale tester and the price of small-scale tester, with a high performance price ratio.
10 Can be connected to the computer to run. Through the full set of English operation software on Windows platform, it can carry out various large-scale and more automatic verification work, test and scan various protection settings conveniently, store test data in real time, display vector diagram, draw fault waveform, print online report, etc.
Parameters
Alternating current output | Output accuracy | 0.5 magnitude |
Phase current output (effective value) | 0~40A | |
Three parallel phase current output (effective value) | 0~120A | |
Phase current value with long time under permission (effective value) | 10A | |
Phase current maximum power output | 400VA | |
Three parallel phase current maximum power output | 1000VA | |
Three parallel phase current maximum work time | 10s | |
Frequency range (base wave) | 20~1000Hz | |
Harmonic frequency number | 1~20 time | |
Direct current output | Output accuracy | 0.5magnitude |
Current output | 0~±10A/each phase, 0~±30A/every three parallel | |
Maximum output of load voltage | 20V | |
Alternating current output | Output accuracy | 0.5 magnitude |
Phase voltage output (RMS) | 0~120V | |
Line voltage output (RMS) | 0~240V | |
Phase voltage/line voltage power output | 80VA/100VA | |
Frequency range (base wave) | 20~1000Hz | |
Harmonic frequency number | 1~20 times | |
Direct voltage output | Output accuracy | 0.5 magnitude |
Phase voltage output amplitude | 0~+160V | |
Line voltage output amplitude | 0~+320V | |
Phase voltage/line voltage power output | 70VA/140VA | |
The switch quantity and time measurement | Switch parameters input (7ways) | Empty contact: 1~20mA, 24v |
Switch parameters output (2couples) | DC: 220V/0.2A | |
Time measurement | Measuring range: 0.1ms~9999s | |
size | 400mm×300mm×180mm | |
22kg | ||
Supply power | AC 220V±10%,50/60Hz | |

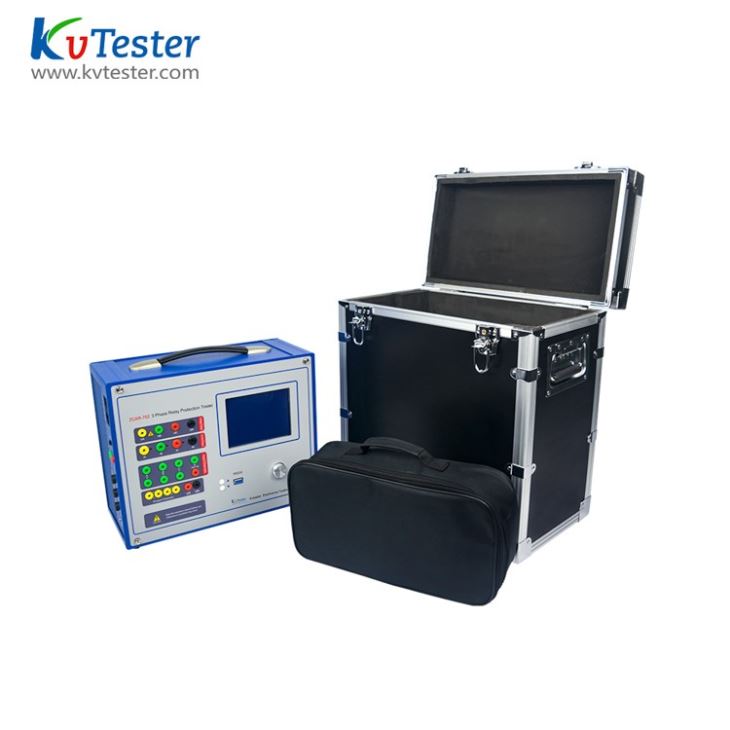

Equipment Accessories List
Accesories List | Unit | Quantity |
Host | Set | 1 |
Special test lines | Set | 1 |
PC control software CD | pcs | 1 |
Special USB serial port | pcs | 2 |
Aluminum alloy boxes | pcs | 1 |
User Manual | pcs | 1 |
Quality test report | pcs | 1 |
Certificate of Origin | pcs | 1 |
Fuse | pcs | some |
