Earth Impedance Tester
Brief Introduction

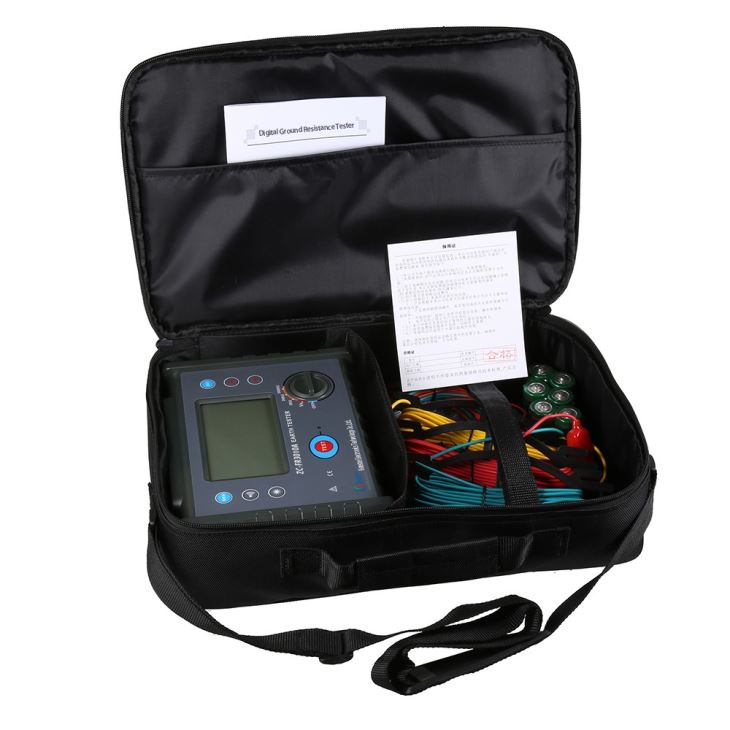

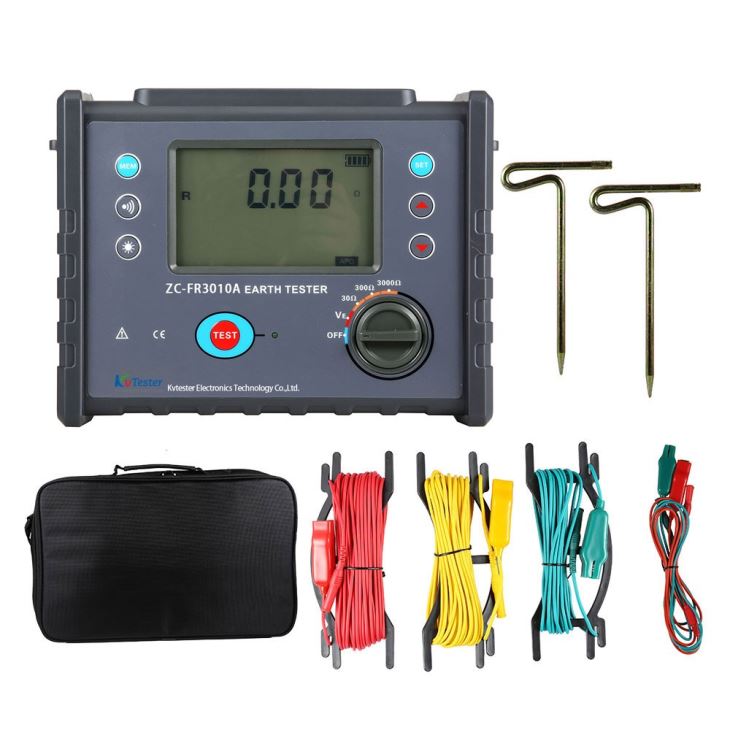

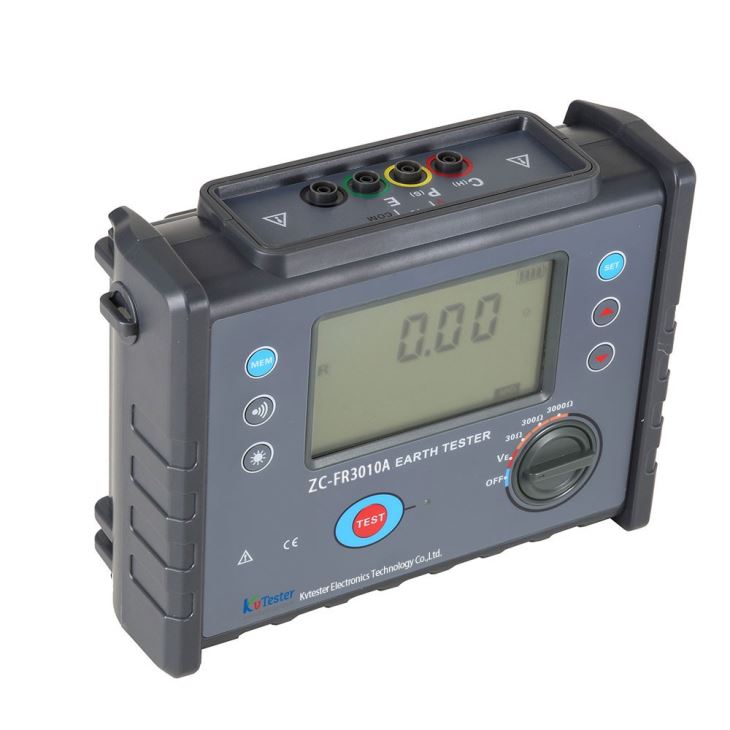

ZC-FR3010A earth impedance tester is a commonly used meter for measuring grounding resistance.
Features
1. It adapts large-LCD gray screen backlight display and microprocessor technology to meet the requirements of two-wire and three-wire test resistors. It’s a new generation grounding measurement instrument that replaces traditional swing table measurement.
2. Applicable to telecommunications, electric power, meteorology, computer room, oil field, distribution line, iron tower transmission line, gas station, factory ground network, lighting rod, etc. Instrument detection is accurate, fast, simple, stable and reliable.
Technical Data
Resistance Range | 0.01Ω-3000Ω ; Accuracy: ±1.5%rdg±3dgt |
Resistance resolution | 0.01Ω |
VoltageRange | 0.01V-600V AC ; Accuracy: ±1.5%rdg±3dgt |
Voltage resolution | 0.01V |
Function | Ground resistance test, ground voltage test, low value resistance test |
Power Supply | 1.5V (LR14) Alkaline Battery 6 Section |
Measurement Mode | Precise three-wire measurement, simple two-wire measurement |
Test current | >20mA(sine wave) |
Measure indication | LED flashing indicator during measurement, LCD countdown display |
LCD size | 108mm×65mm |
Meter size | L/W/H: 240mm×188mmx85mm |
Test Line Length | 3 strips: Red 15m, Yellow 10m, Green 5m each 1 strip |
Auxiliary Grounding Rod | 2 roots |
Measure Time | Ground voltage: about 3times/second; Grounding resistance: about 5 times/second |
Overflow Display | Exceed measurement range overflow function: “OL ” symbol display |
Battery Voltage | Insufficient battery voltage, showing low battery symbol |
Power Consumption | Standby: 40 mA Max (backlight off), |
turn on backlight: 43 mA Max, | |
measure: 120 mA Max (backlight off) | |
Weight | Instrument: 1230g (including battery), |
test line: 610g (including simple test line), | |
auxiliary grounding rod 360g (2 roots), | |
instrument bag: 271g | |
Overload Protection | Grounding resistance: AC280V/3 seconds between E-H and E-S ports |
Electromagnetic Properties | EC61010-4-3, radio frequency electromagnetic field ≤1V/m |
Suitable for Safety Regulations | IEC61010-1, IEC1010-2-31, IEC61557-1, 5, IEC60529 (IP54), pollution degree 2, CAT III 300V |
