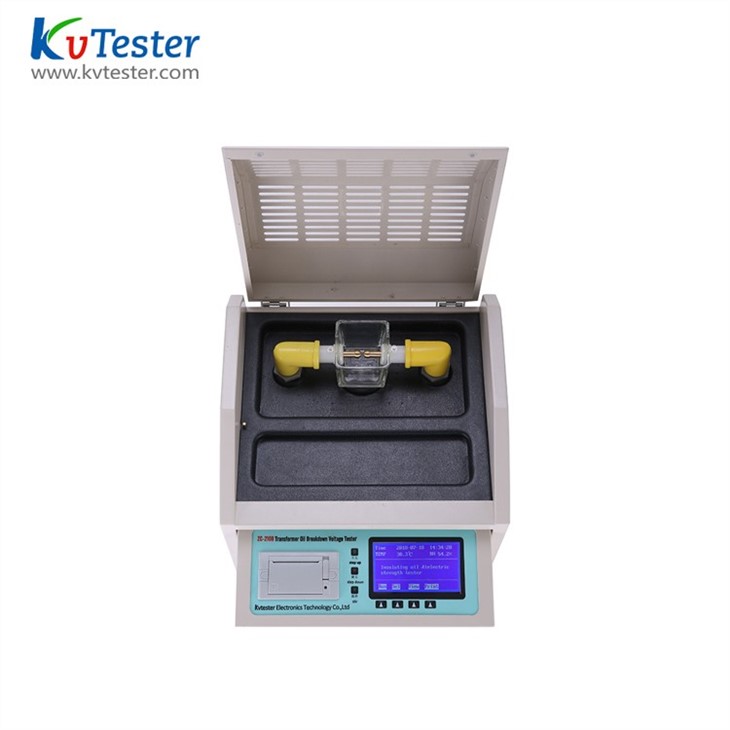

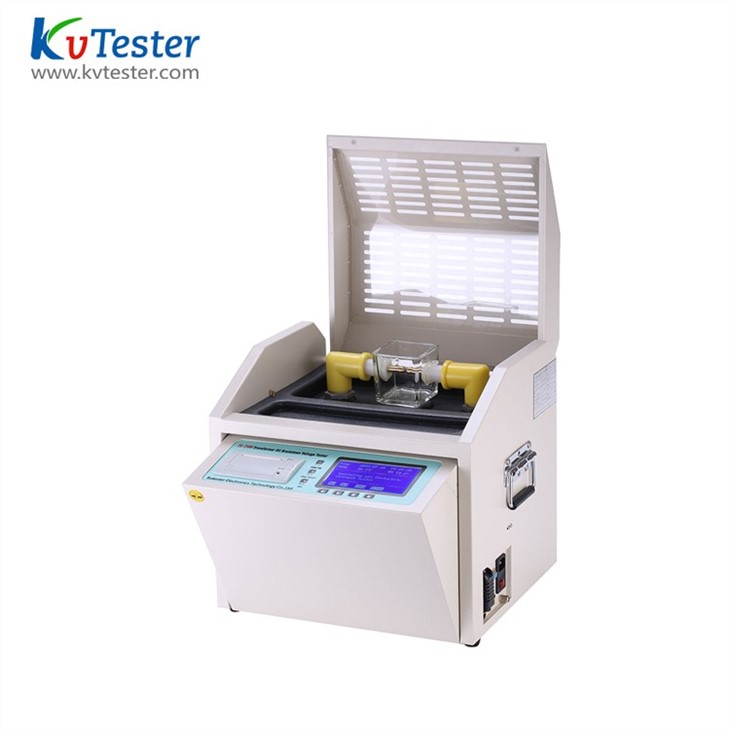

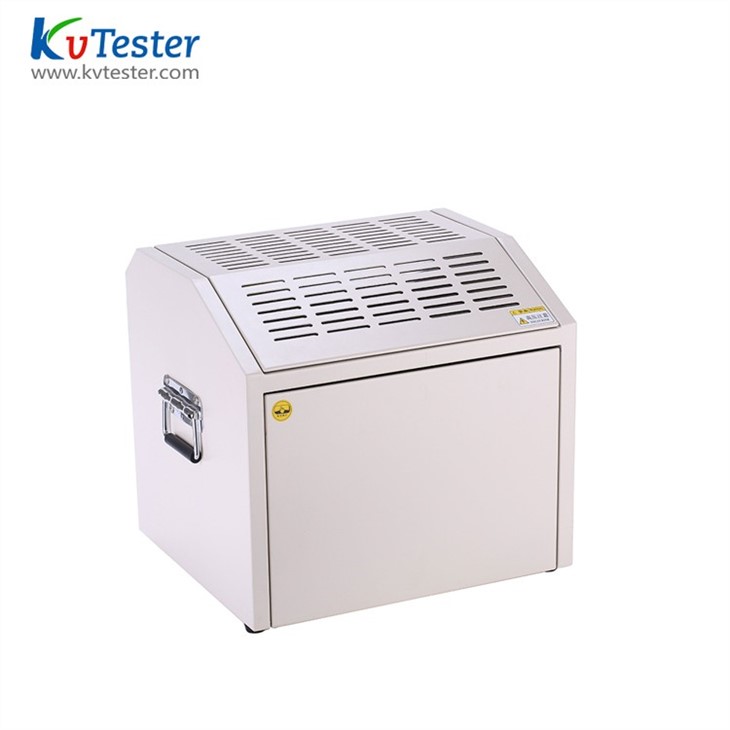

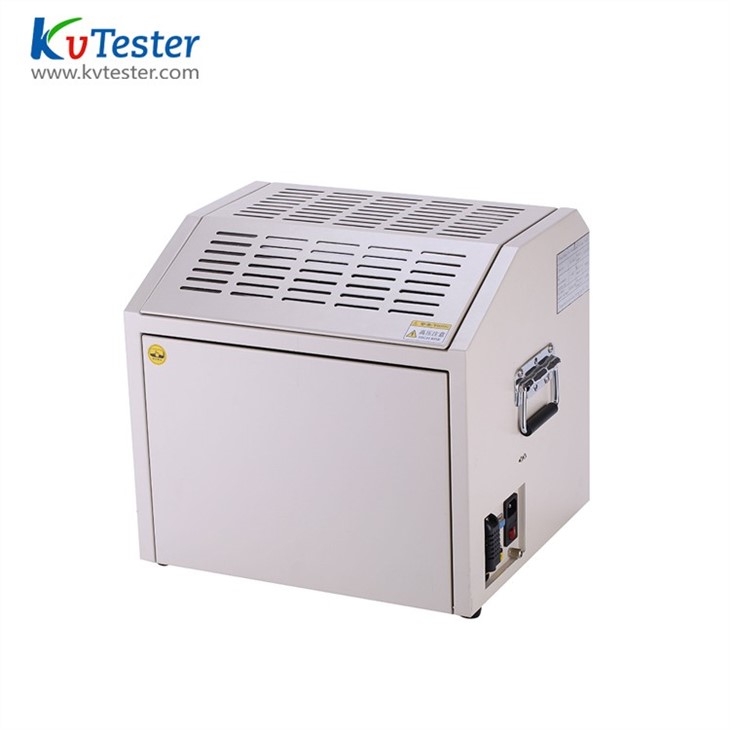

0-80KV Automatic Transformer Insulating Oil Breakdown Voltage Bdv Tester
Brief Introduciton
Automatic Oil Dielectric Breakdown Voltage Tester was designed on basis of IEC156 Oil-insulating testing, the process and result displayed by LCD, built-in EEPROM , can save 100 groups test results, all work can finished by mouse, test results printed by micro printer. This equipment is easy to operate, with powerful functions, stable and reliable, with strong anti-jamming ability, without death halt during the test.
Product Parameters
Input voltage | AC 220V |
Output voltage | AC 0~80KV/100kv |
Voltage boosting speed | 2KV/S ±10% |
Accuracy degree | 3 |
Number of times of continuous test | 1-9 |
Stirring time | 0~99 seconds |
Standing time | 0-9 minutes 59 seconds |
Can store 100 groups data. | |
Voltage limit setting | 20KV-70KV |
Voltage withstands time | 1-10 minutes |
Temperature | 5-40ºC |
Dimension | 420mm ×380mm ×410mm |
Weight | 28kg |
Features
1.It uses industrial single chip control, application of large scale integrated circuit, a new type of I/O interface.
2. Unique detection and anti interference technology, greatly improve the performance of the equipment.
3.Can store 99 groups of oil sample test data, to facilitate future reading and printing
4.Anti interference ability, the import of liquid crystal screen display, under the strong light is still visible
5.Booster sufficient capacity and ensure the stability and repeatability of the test.
Accessory List
No. | Device name | Number |
1 | The equipment | 1 |
2 | The oil cup | 1 |
3 | The power cord | 1 |
4 | Standard gauge | 1 |
5 | Insurance tube | 2(3A) |
6 | Impeller | 2 |
7 | Tweezers | 1 |
8 | Ground wire | 1 |
9 | Printing paper | 1 |
