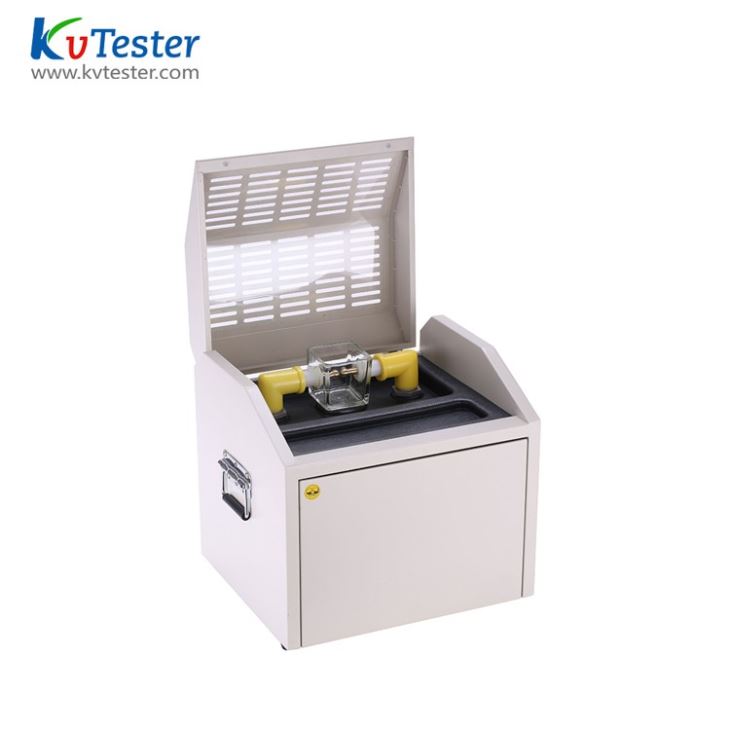

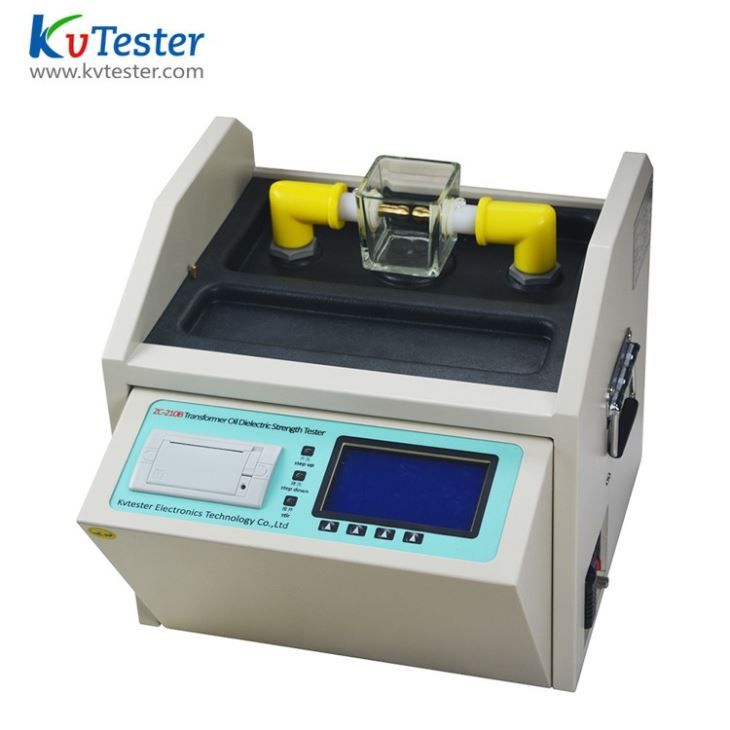

Oil Dielectric Strength Tester
Automatic Oil Dielectric Strength Tester was designed on basis of IEC156 Oil-insulating testing, the process and result displayed by LCD, built-in EEPROM , can save 100 groups test results, all work can finished by mouse, test results printed by micro printer. This equipment is easy to operate, with powerful functions, stable and reliable, with strong anti-jamming ability, without death halt during the test.
Oil Dielectric Strength Tester Features:
1. It uses industrial single chip control, application of large scale integrated circuit, a new type of I/O interface.
2. Unique detection and anti interference technology, greatly improve the performance of the equipment.
3. Can store 99 groups of oil sample test data, to facilitate future reading and thermal printer can print out all average value and breakdown voltage.
4. Anti interference ability, the import of liquid crystal screen display, under the strong light is still visible
5. Booster sufficient capacity and ensure the stability and repeatability of the test.
6. The standard RS232 interface, can communication with the computer.
Product Technical Parameters
One cup Oil Dielectric Strength Tester Specification
0 ~ 80 KV/100KV
voltage distortion rate
Voltage limit setting
2.0 ~ 3.5 KV/S (adjustable)
static set time
15 minutes (adjustable)
5 minutes (adjustable)
1 ~ 6 times (optional)
power supply voltage
AC220V±10% 50Hz±1 Hz
Number of times of continuous test
Voltage withstands time:
Can store 100 group data.

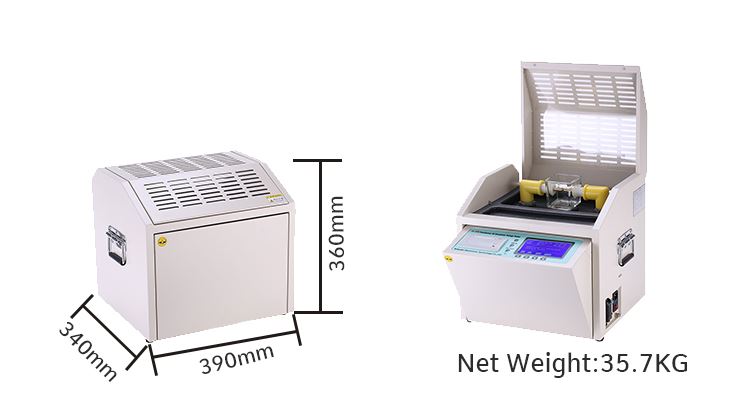

390mm ×340mm ×3600mm

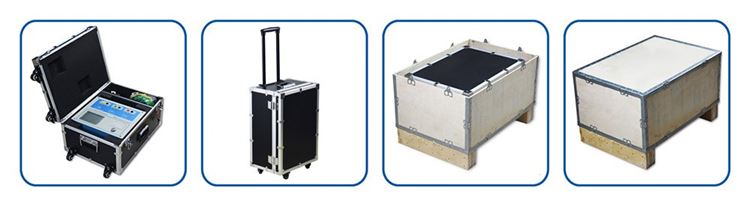

Packing and Shipping
