BDV Test of Transformer
Introduction

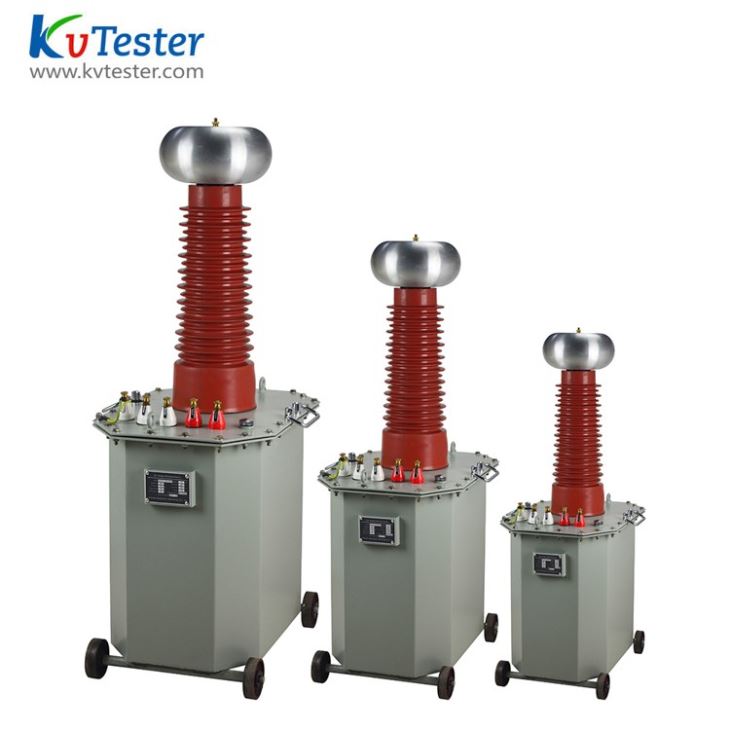

BDV test of transformer also called transformer booster, it is the basic equipment for power station, power supply system and scientific research units. Used for the dielectric strength test of various electrical appliances, electrical equipment, insulation materials in the prescribed voltage, test products insulation level, it is found that the insulation defects sample measure to bear voltage capability.
Product Details
 | Brand new idea, excellent material New insulating material, small size and light weight |
High pressure casing The inner structure of the casing is beautiful. |  |
 | Terminal High voltage tower coil, powerful performance |
Body with handle Humanized design, easy to operate and move |  |
Features
1. ZC-501A series oil immersed transformer AC test using single frame core type iron core structure.
2. The primary winding is wound on the iron core, and the high voltage winding is outside, and the coaxial arrangement reduces the leakage flux and increases the coupling between the windings.
3. The outer shell of the product is made of the best shape of the octagonal structure with the core; the overall appearance is beautiful and generous.
4. Voltage level: 10Kv~200Kv
5. Capacity range: 3Kva~100Kva
Oil immersed Dielectric Test Transformer Technical parameter
The rated voltage | AC50~300Kv, DC 70~210kV |
Rated capacitance | 1~400kVA |
Product Category | AC,AC,AC,AC,ACand DC |
Main product Specifications:
Specification model | capacity (kVA) | High voltage | High voltage | Low voltage input | Ratio | Temperature rise °C (30 minutes) | |
Voltage(V) | Current(A) | ||||||
ZC-501A-1.5/50 | 1.5 | 50 | 30 | 200 | 7.5 | 500 | 10 |
ZC-501A-3/50 | 3 | 50 | 60 | 200 | 15 | 500 | 10 |
ZC-501A-5/50 | 5 | 50 | 100 | 200 | 25 | 500 | 10 |
ZC-501A-10/50 | 10 | 50 | 200 | 200 | 50 | 500 | 10 |
ZC -501A-20/50 | 20 | 50 | 400 | 380 | 52.6 | 500 | 10 |
ZC-501A-30/50 | 30 | 50 | 600 | 380 | 79 | 500 | 10 |
ZC-501A-50/50 | 50 | 50 | 1000 | 380 | 132 | 500 | 10 |
ZC-501A-5/100 | 5 | 100 | 50 | 200 | 25 | 1000 | 10 |
ZC- 501A-10/100 | 10 | 100 | 100 | 200 | 50 | 1000 | 10 |
ZC-501A-20/100 | 20 | 100 | 200 | 380 | 52.6 | 1000 | 10 |
ZC-501A-30/100 | 30 | 100 | 300 | 380 | 79 | 1000 | 10 |
ZC- 501A-50/100 | 50 | 100 | 500 | 380 | 132 | 1000 | 10 |
ZC 501A-15/150 | 15 | 150 | 100 | 380 | 39.5 | 1500 | 10 |
ZC 501A-20/150 | 20 | 150 | 133 | 380 | 52.6 | 1500 | 10 |
ZC 501A-25/150 | 25 | 150 | 167 | 380 | 65.7 | 1500 | 10 |
ZC 501A-30/150 | 30 | 150 | 200 | 380 | 79 | 1500 | 10 |
ZC 501A-50/150 | 50 | 150 | 333 | 380 | 132 | 1500 | 10 |
ZC 501A-100/150 | 100 | 150 | 667 | 380 | 263 | 1500 | 10 |
ZC 501A-50/200 | 50 | 200 | 150 | 380 | 132 | 2000 | 10 |
ZC 501A-100/200 | 100 | 200 | 500 | 380 | 263 | 2000 | 10 |
ZC 501A-150/200 | 150 | 200 | 750 | 380 | 398 | 2000 | 10 |
ZC 501A-200/200 | 200 | 200 | 1000 | 380 | 526 | 2000 | 10 |
ZC 501A-300/200 | 300 | 200 | 1500 | 380 | 790 | 2000 | 10 |
ZC 501A-50/300 | 50 | 300 | 167 | 380 | 132 | 3000 | 10 |
ZC 501A-100/300 | 100 | 300 | 333 | 380 | 263 | 3000 | 10 |
ZC 501A-150/300 | 150 | 300 | 500 | 380 | 395 | 3000 | 10 |
ZC 501A-200/300 | 200 | 300 | 667 | 380 | 526 | 3000 | 10 |
ZC 501A-300/300 | 300 | 300 | 1000 | 380 | 790 | 3000 | 10 |
Supporting product introduction
ZC-500A series box | capacity :1KVA - 5KVA input voltage:0.22KV |
ZC-500B series box: | capacity: 300KVA - 10KVA input voltage:0.22KV,0.38K |
The type digital micro ammeter | MSA-I |
Resistance capacitance AC DC voltage divide | RCF-50,100,150,200KV |
High voltage DC discharge rod | FZ-70,140,210KV |
High-voltage silicon stack | 2DL-150,300,450KV |
Insulating support | 50,100,200,300KV |
High voltage filter capacitor | 0.01Uf-0.1uF,40-100KV |
Pressure ball | |
Protective sphere | gapQ-50,100,150,200,250,500 |
Medium oil cup | |
Folding trolley | 150,300 |
Water resistance | |
High-voltage electroscope | 10KV 35KV |
High pressure phase detector | 10,35,110KV 220KV |
 | Our services 1. Customization, We will provide more precisely and efficiently manufacture and serve according to clients' requirements. 2. Scheme design 3. Quality service: We have professional QC team to ensure your product more better. 4. Direct selling by manufacturers 5. No worries after sales |
