CT analyser Brief Introduction

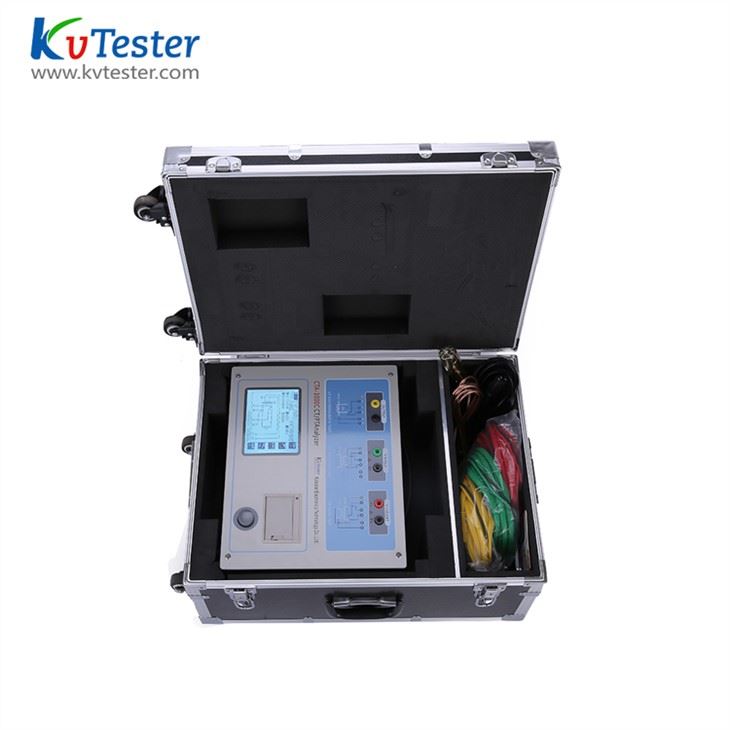

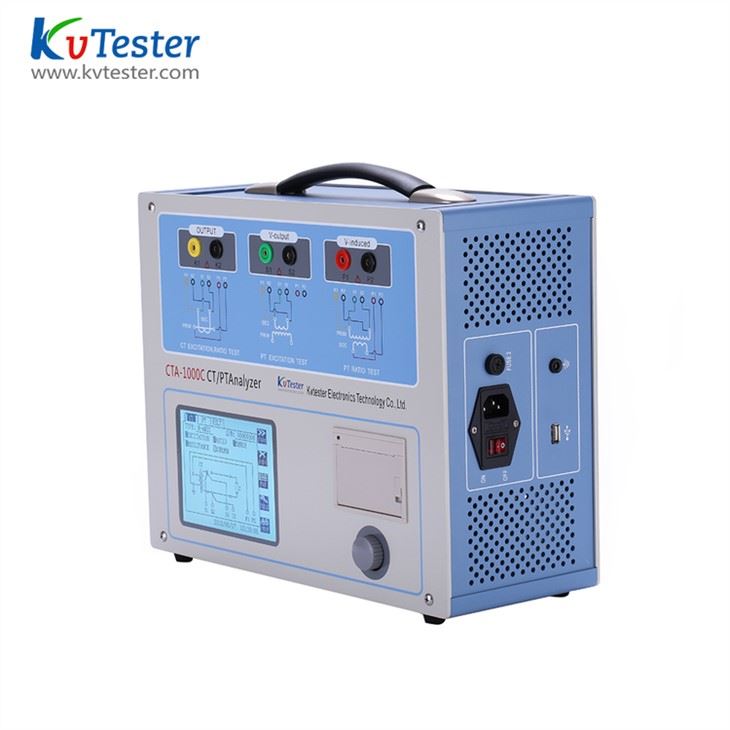

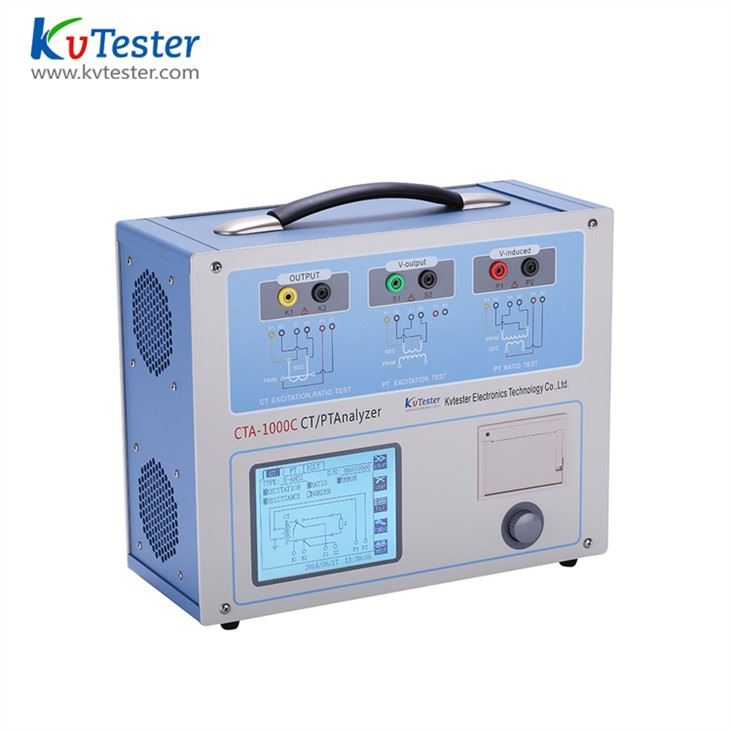

This portable Automatic Current Transformer Testing Equipment CT PT Analyzer allows performing many different measurements such as saturation, ratio and polarity tests and CT winding resistance test. Substation maintenance and commissioning test equipment, CTA-1000 Series CT Analyzer is extremely appreciated by electrical engineers for its high accuracy and portability.

Main Technical Data

How CT Analyzer works

• Injects low test signals into secondary side of the CT

• Determines the CT‘s equivalent circuit parameters

• Identifies all relevant CT performance parameters

• Displays all relevant parameters of the CT and its accuracy at different currents and burdens

• Evaluates the CT according to the selected standard

• Determines unknown CT nameplate parameters

• Demagnetizes the CT after the test.

Range of measurements

• Ratio and phase accuracy

• Winding resistance

• Excitation characteristics (knee points)

• Composite error (ALF, ALFi, FS, FSi, Vb)

• Burden impedance

• Transient CT classes and parameters (TPS, TPX, TPY and TPZ type CTs)

• Transient dimensioning factor (Ktd)

• If missing/unknown: CT type, class, ratio, knee point, power factor, nominal burden, operating burden, primary and secondary winding resistance

• Remanence and residual magnetism

Additional features:

• Simulate different burdens and currents

• Analyze the effect of CT saturation

• Measure VT ratio

• Multimeter

Key features

• Highest measurement accuracy: 0.05 % / 2 min when calibrating on site

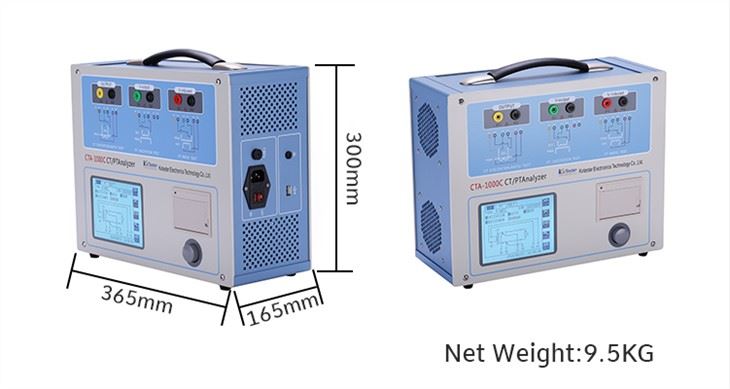

• Very small and lightweight (<9kg /19.8lbs), easy to transport for on-site testing

• Automatic evaluation according to IEC, IEEE and to customized or local/national standards

• Short commissioning times (duration of the automatic test < 2min)

• Excellent workplace safety - Tests run at max. 180 V

Product key Advantage

Test Report

1. Is it all right to make customer's own brand name?

Yes, we can provide OEM service.

2. Are you a manufactuer or trading company?

We area leading manufacturer in China.

3. Can you do the design for us?

We can provice personalized customization service.

4. Are you in stock?

Some products are in stock.

5. Does your product have warranty service? How long is the warranty period?

Our warranty period is one year free and lifelong maintenance, and if the product we sell is damaged (if not man-made damage), in the first year, we will send free parts for replacement.
