100kv transformer oil testing kit Introduction

It is testing all kinds of Insulation Oil's Dielectric Strength Value.



100kv transformer oil testing kit Features

1. With a microprocessor, automatically fulfill the withstand voltage test for oil circulation with a range of 0~100kV (including boosting, maintaining, mixing, standing, calculation, printing and other operations).

2. Display by large-screen LCD and prompt by Chinese menu.

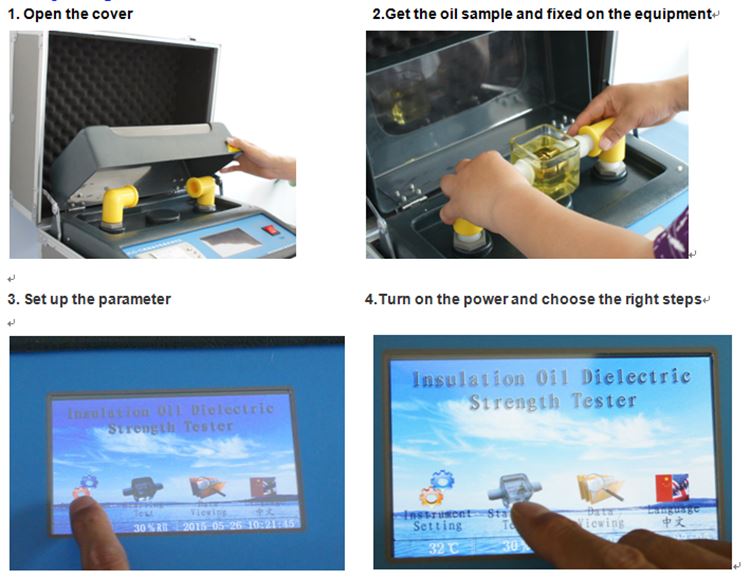

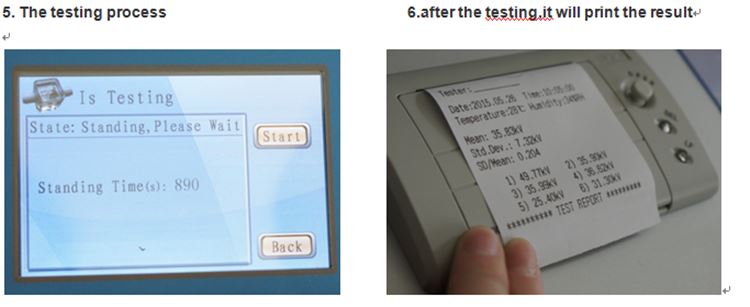

3. Simple operation. The machine will automatically complete the withstand voltage test on one cup of sample oil after simple setting by the operator. Breakdown voltage value of 1 to 6 times and recurrent times will be automatically saved. After the test, the thermal printer will print each breakdown voltage value and average value.

4. Power-down preservation. It can save 100 tested results and displaying current ambient temperature and humidity.

5. Adopt a single-chip microcomputer to boost the voltage at an even speed. The voltage is accurate at 50HZ, ensuring the whole process easy for control.

6. Equipped with over-voltage, over-current and limit protections to ensure the safety of operators.

7. With the function of displaying the measured temperature and system clock.

8. Communicate with computer with a standard RS232 interface.

Portable 100kv High Voltage Transformer Oil BDV Test Kits Technical Data

Power supply

AC 230V±10%; 50HZ±5H(Different Power Supply can be supplied.)

Output voltage

0~100kV (optional)





Voltage raising speed


Standing Time

15min (adjustable)

Boosting Frequency

1~9 time(s) (optional)

Wave form distortion


Measuring accuracy


Time of dielectric strength

less than 10ms

Working Environment

Temperature 0℃~ 45℃, Applicable humidity: <75% RH

Overall dimension
