Digital Equipotential Tester
ZC-ES3050 digital equal potential tester is also known as micro-ohmmeter, ohmmeter, DC grounding resistance tester, using the most microprocessor technology, four-wire test, safe and reliable.It is a special instrument for detecting equipotential bonding quality between metal components of objects such as housings, lightning protection belts, ground beams, structures, cabinets, steel bars, pipes, windows, guardrails, radiators, and assembly lines.It can also measure the resistance of the connection conductors between various electrical equipments and earth ground, the DC resistance of transformers, and also can measure the contact resistance of switches and socket contacts, coils, metal wires, welding points and other low-value resistances.

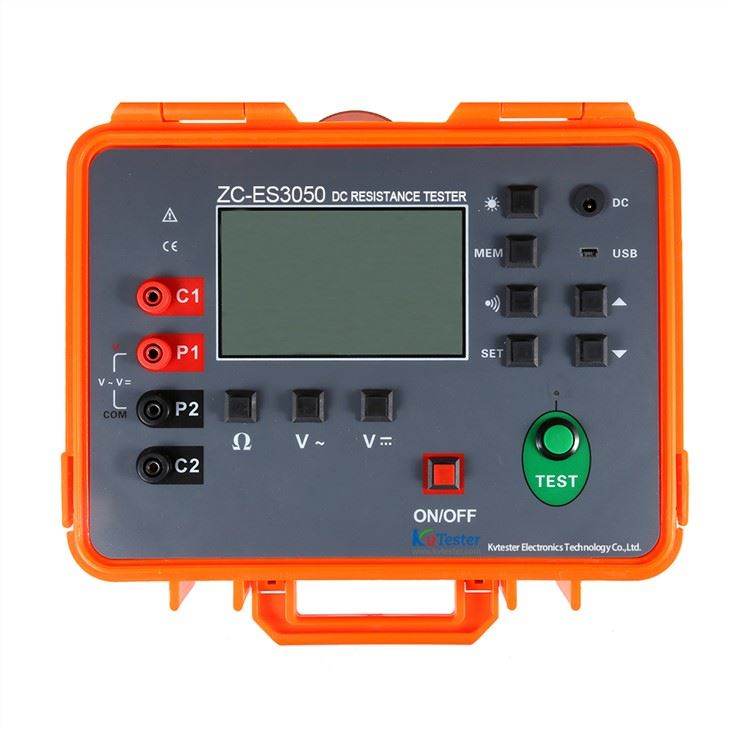

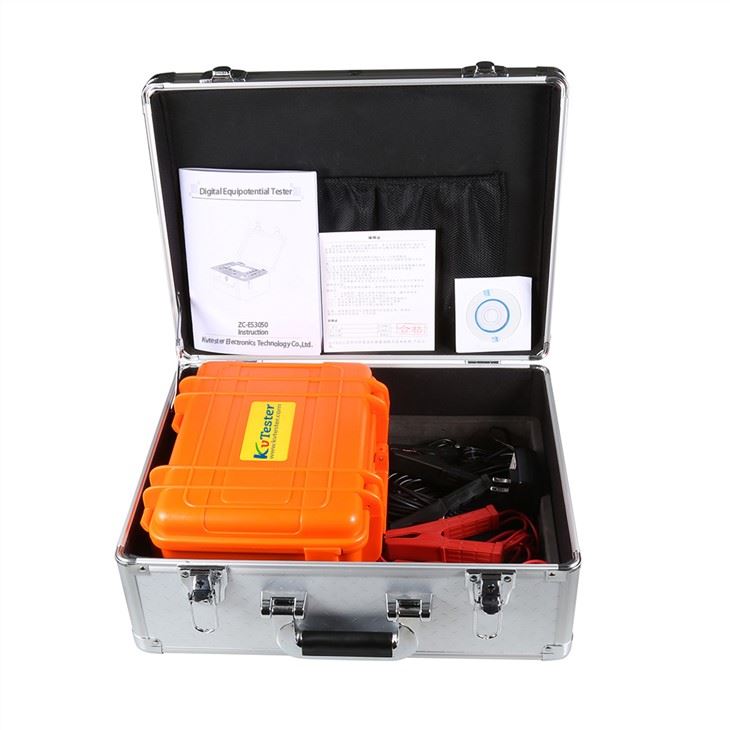

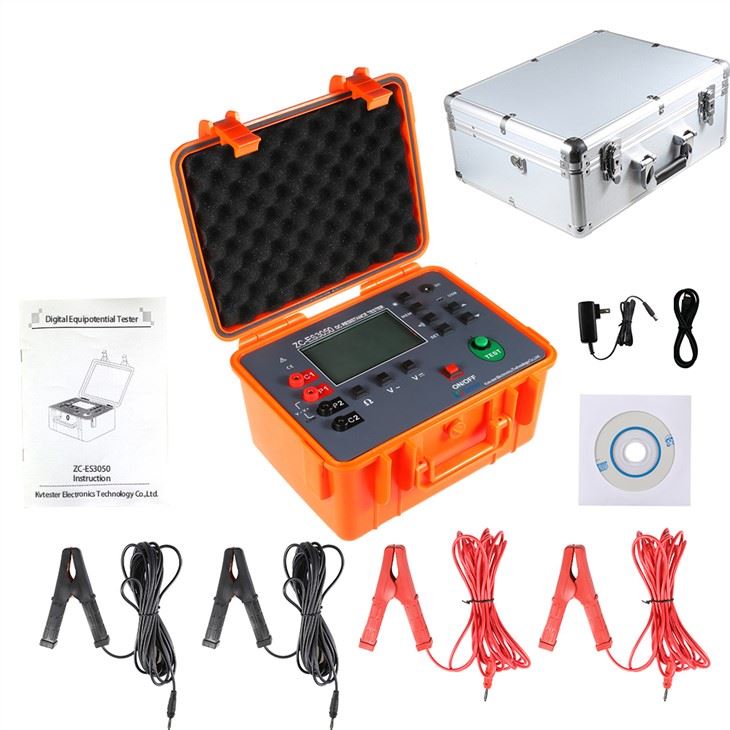

The ZC-ES3050 digital equipotential tester consists of a host computer, monitoring software, test leads, and communication lines.
Technical Specification
Function | Equipotential bonding resistance test between metal components, low-value resistance test, resistance test of connecting conductors between ground and ground electrodes, contact resistance test, etc. |
DC resistance range | 0.0001Ω～30.00KΩ Accuracy±1%rdg±5dgt |
Resistance resolution | 0.0001Ω |
Test method | Four-wire test |
Test current | ≥1A |
Open circuit voltage | ≤7V |
Capacity factor | Measuring capacity factor≤15W |
DC voltage range | 0.0V～1000V DC Accuracy±1.5%rdg±5dgt |
DC voltage resolution | 0.1V |
AC voltage range | 0.0V～750V AC Accuracy±1.5%rdg±3dgt |
AC voltage resolution | 0.1V |
Power | DC 6V 4.5Ah Large-capacity battery Continuous standby for more than 100 hours |
Backlight | Controllable gray screen backlight, suitable for use in dim places |
LCD size | 108mm×65mm |

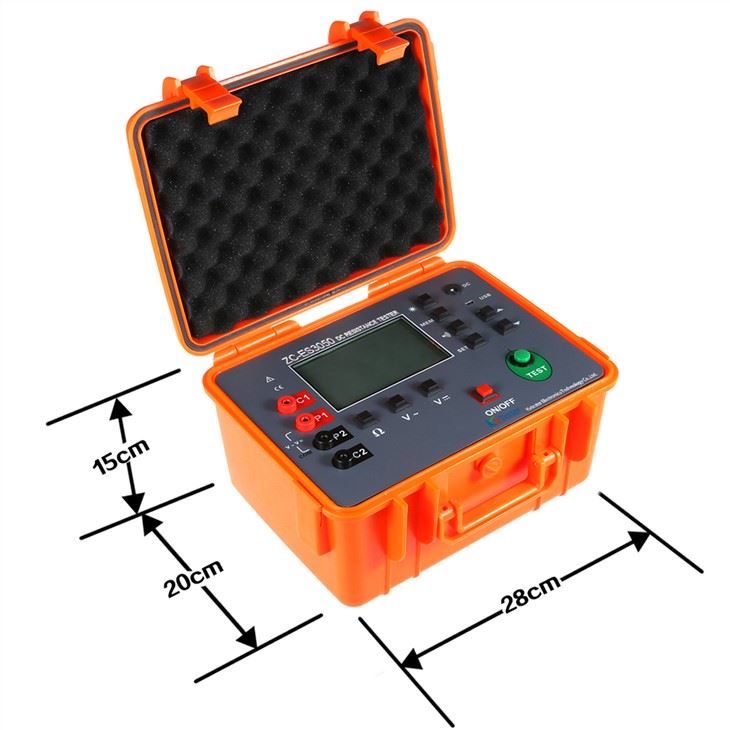

Instrument size | L/W/H：277.2mm×227.5mm×153mm |
Test line length | Red 5m，black 5m each 2PCS |
USB interface | With USB interface, software monitoring, storage data can be uploaded to the computer, save and print |
Communication Line | USB Communication Line 1PC |
Data review | Data review function: "MR" symbol display |
Alarm function | Alarm when the measured value exceeds the alarm setting value |
Battery voltage | Real-time display of battery power, reminding timely charging when battery voltage is low |
Automatic shut-down | "APO" indicates automatic shutdown after 15 minutes |
Power consumption | Standby: 30mA Max(backlight off) |
Turn on backlight: 43mA Max | |
Measure：2A Max(backlight off) | |
Weight | Instrument： 2397g(including battery) |
Test line：850g(including simple test line) | |
Instrument box：1200g | |
Working temperature and humidity | -10℃～40℃；below 80%rh |
Storage temperature and humidity | -20℃～60℃；below 70%rh |
Overload protection | C1-C2 P1-P2 AC 280V/3 seconds between ports |
Insulation resistance | Above 10MΩ(500V between circuit and housing) |
Pressure resistance | AC 3700V/rms( between circuit and housing) |
Electromagnetic properties | IEC61010-4-3，Wireless frequency electromagnetic field≤1V/m |
